Evaporation & Crystallization

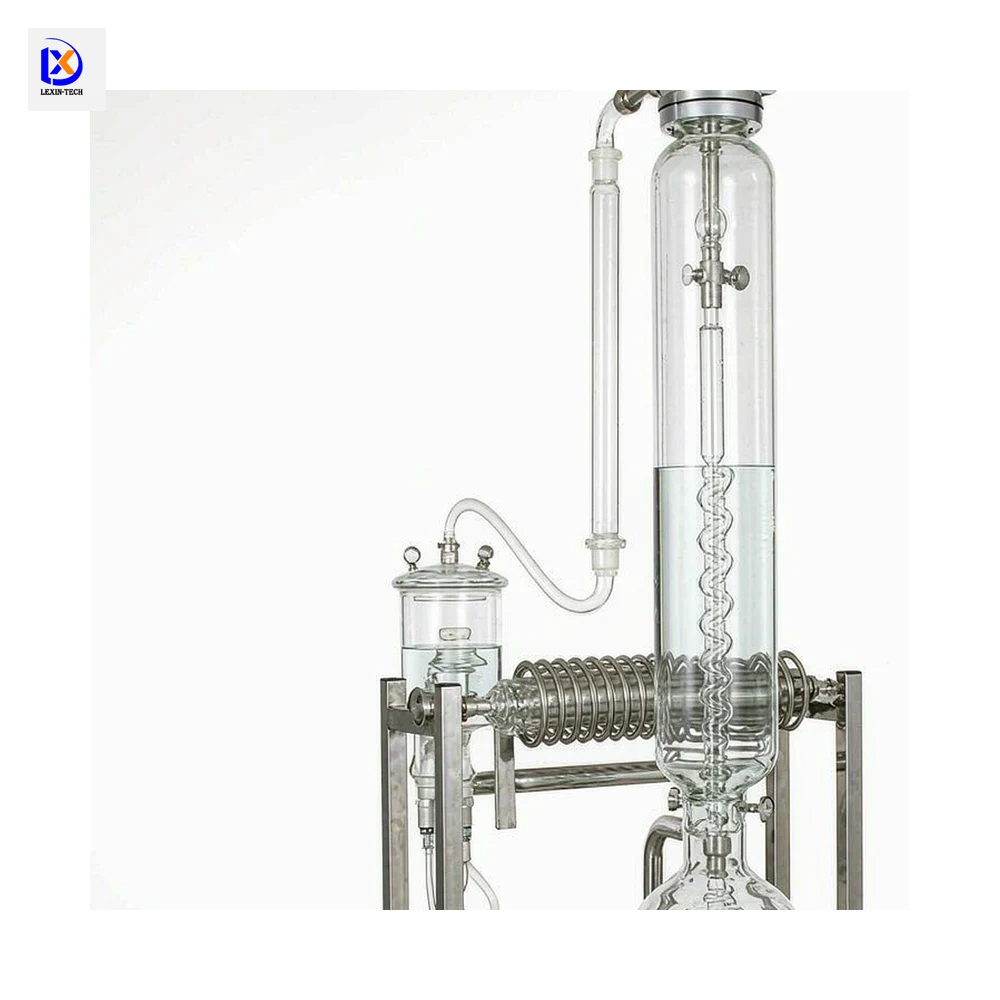

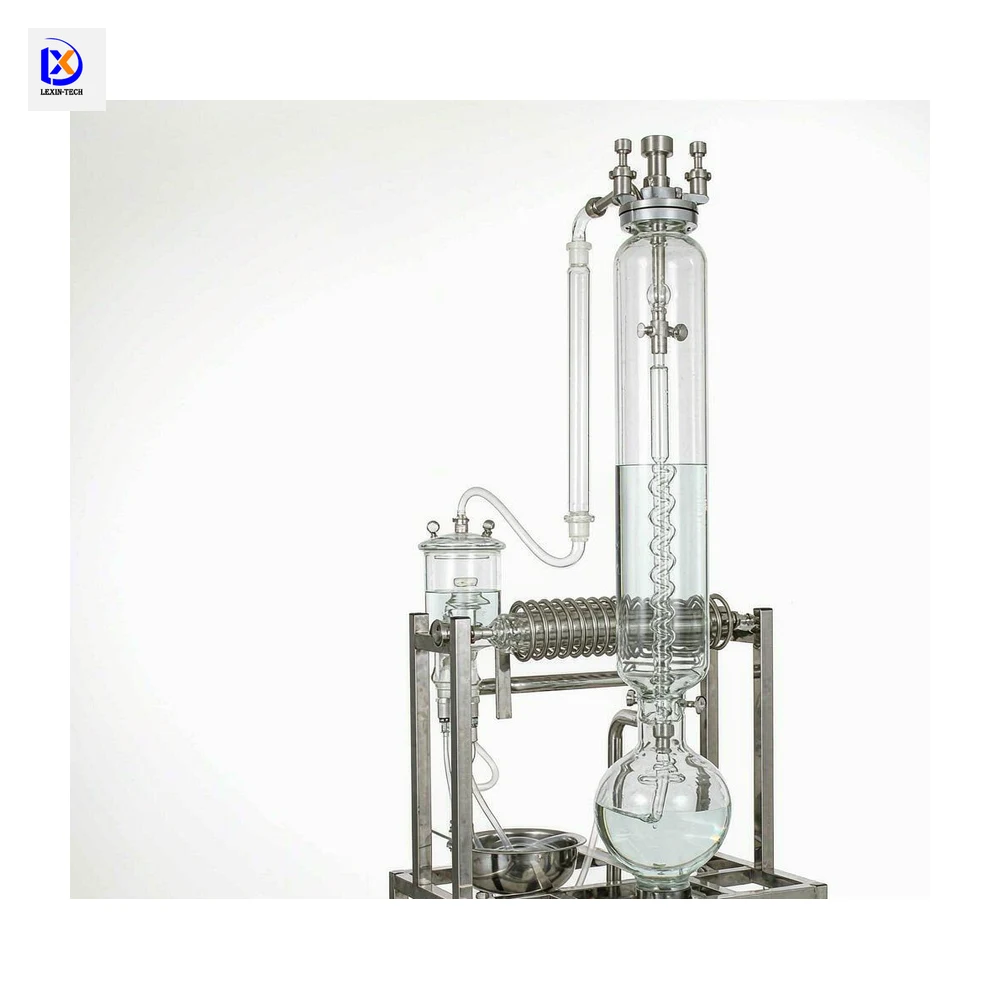

Lab-Scale Falling-Film Evaporator
PriceOn request — quoted against your specification
Lexin-tech is professional customized China Lab-Scale Falling-Film Evaporator manufacturers,supplier and factory, specialized in providing customized Lab-Scale Falling-Film Evaporator in stock with wholesale price. For quotation, contact us now.
- Built to order
Engineered against your feed assay and throughput - Bench & pilot tested
Sample testing before the flowsheet is frozen - Export documented
Pre-tested, skid-mounted, documented for customs - EN / ES / RU / AR
Technical support in four languages
Lexin-tech is professional customized China Lab-Scale Falling-Film Evaporator manufacturers,supplier and factory, specialized in providing customized Lab-Scale Falling-Film Evaporator in stock with wholesale price. For quotation, contact us now.
Specifications
| Evaporator Type | Single-pass falling-film evaporator with vertical glass tube column for open-pan-free concentration test work |
|---|---|
| Column Material | Borosilicate glass 3.3 (GG17) falling-film column with PTFE gaskets and stainless steel clamp hardware |

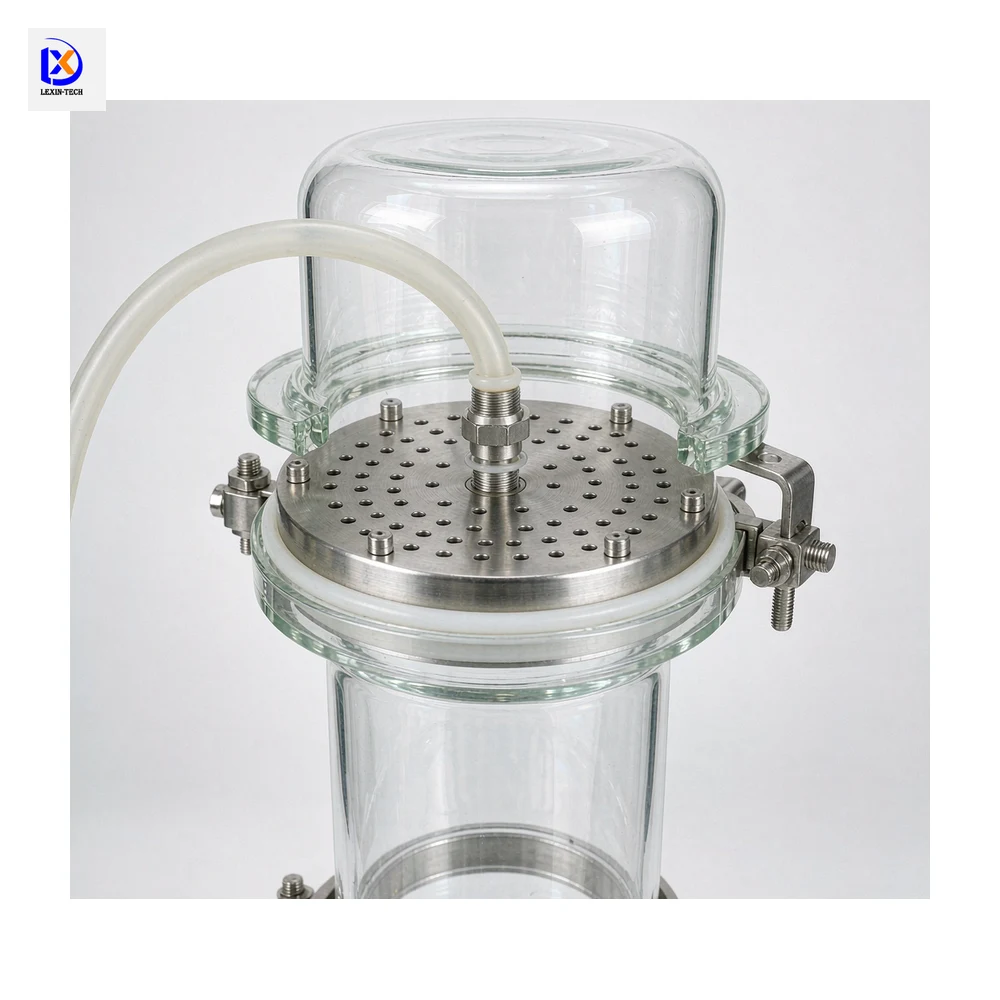

| Feed Distribution | Stainless steel perforated liquid distribution head on the column top for uniform film formation |
| Evaporation Capacity | Approx. 1 - 5 L/h water evaporation equivalent at pilot settings (to be confirmed by test work) |
| Vapor-Liquid Separator | Glass separator with concentrate collection flask and bottoms drain |
| Condenser | Horizontal borosilicate glass coil condenser with cooling water inlet/outlet and distillate receiver |
| Vacuum System | Operates under reduced pressure down to approx. -0.09 MPa (to be confirmed by test work) |
| Feed System | Feed tank with silicone tubing line and flow control valve for steady film feeding |
| Heating | Electric heating mantle or water bath on the column, up to approx. 100 C (to be confirmed by test work) |
| Suitable Systems | Aqueous leach liquors incl. H2SO4 up to 150 g/L; no fluoride, no hydrofluoric acid and no hot concentrated alkali for the glass column - such systems require PTFE-lined or metallic alternatives (to be confirmed by test work) |
Values are the documented specifications for this model. Final dimensions are confirmed on the approved drawing before production.
