Solid-Liquid Separation Equipment

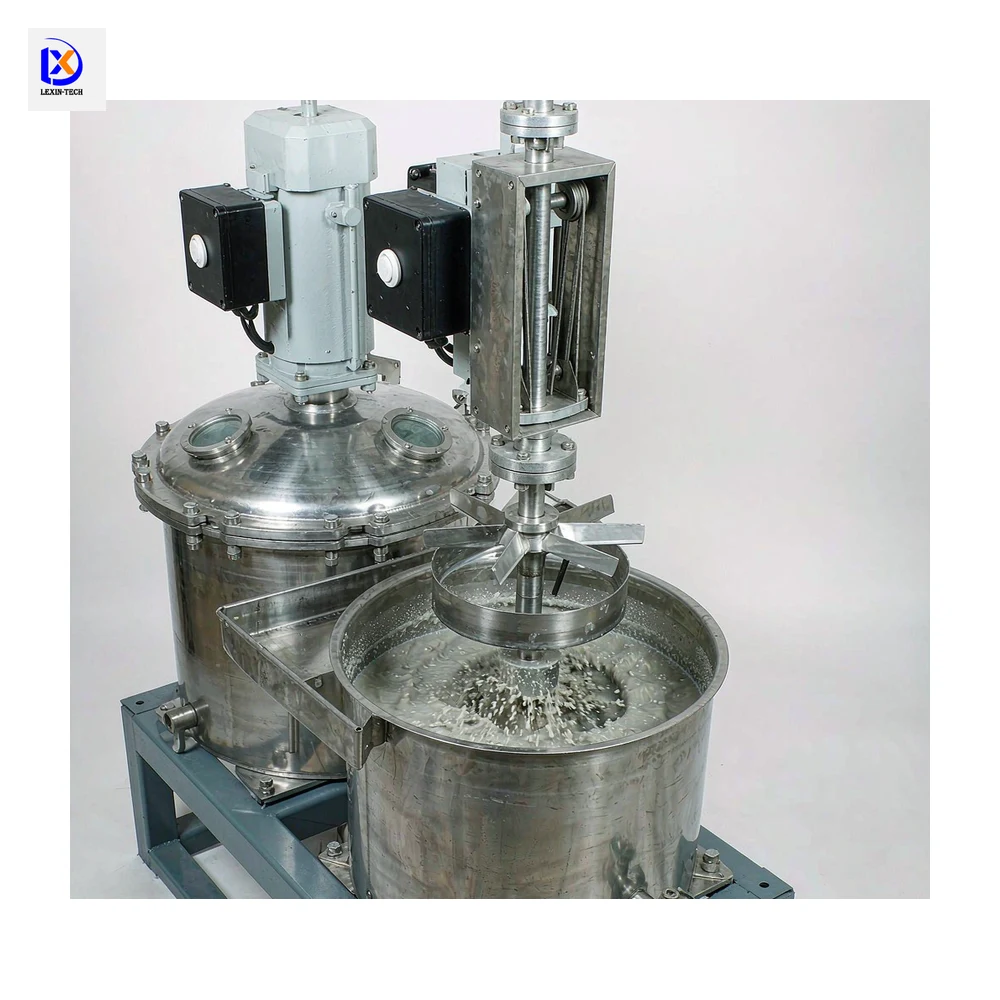

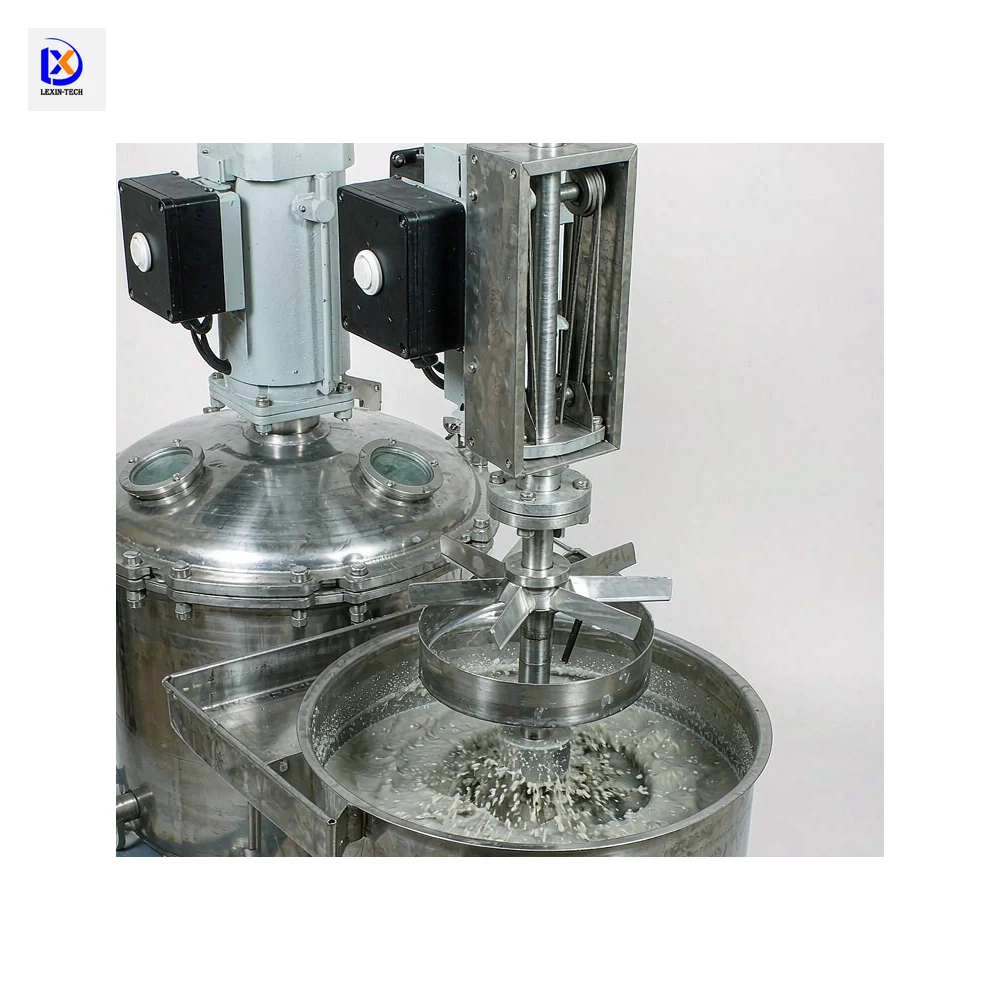

Laboratory Attrition Scrubber
PriceOn request — quoted against your specification
Lexin-tech is professional customized China Laboratory Attrition Scrubber manufacturers,supplier and factory, specialized in providing customized Laboratory Attrition Scrubber in stock with wholesale price. For quotation, contact us now.
- Built to order
Engineered against your feed assay and throughput - Bench & pilot tested
Sample testing before the flowsheet is frozen - Export documented
Pre-tested, skid-mounted, documented for customs - EN / ES / RU / AR
Technical support in four languages
Lexin-tech is professional customized China Laboratory Attrition Scrubber manufacturers,supplier and factory, specialized in providing customized Laboratory Attrition Scrubber in stock with wholesale price. For quotation, contact us now.
Specifications
| Number of Cells | Twin cells in series (single-cell bench version optional) |
|---|---|
| Cell Working Volume | 5-20 L per cell, dished lid with bolted flange and sight glass |
| Cell Material | 304 stainless steel as standard; 316L or rubber-lined cells optional for corrosive pulp |

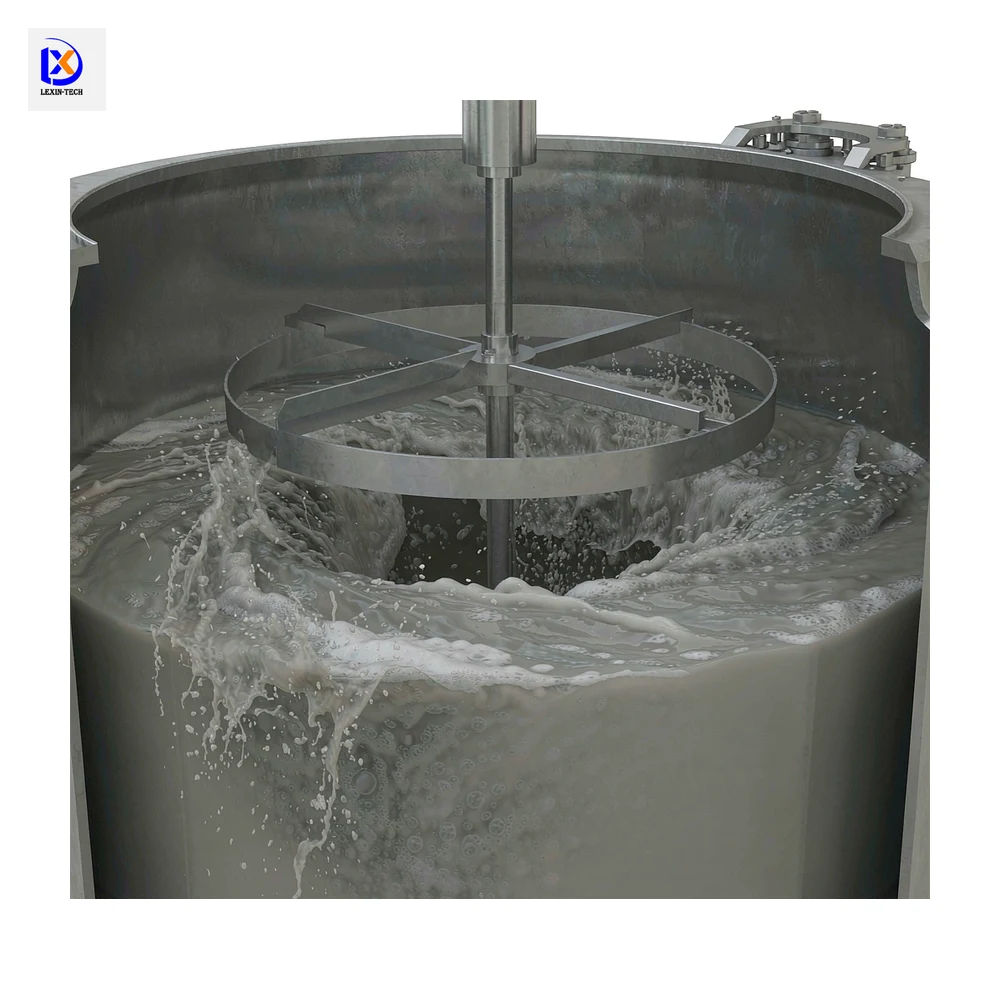

| Agitator | Vertical shaft with pitched-blade impeller above ring stator baffle, 300-800 rpm variable frequency (to be confirmed by test work) |
| Drive | Vertical gear motor with belt drive and guard, 0.75-2.2 kW total installed power |
| Pulp Density Range | 30-70% solids by weight (to be confirmed by test work) |
| Interstage Flow | Overflow launder between cells; individual bottom drain ball valves per cell |
| Frame | Painted structural steel base frame with leveling feet |
| Application & Media Limits | Clay and slime scrubbing, reagent coating removal from silica and industrial minerals, pre-leach surface cleaning of sands; neutral to mildly corrosive pulp for 304 cells - acidic or chloride-bearing pulp requires 316L / lined option |
Values are the documented specifications for this model. Final dimensions are confirmed on the approved drawing before production.
