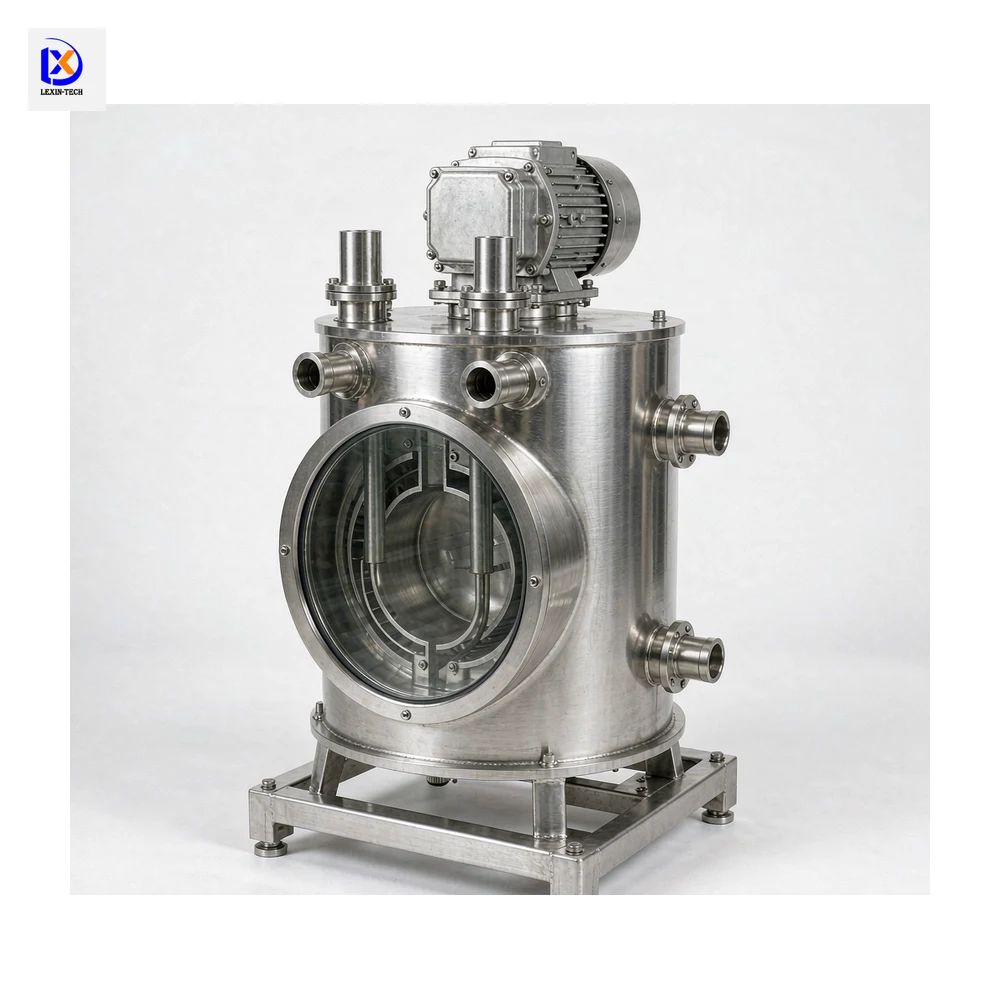

Pilot-Scale Annular Centrifugal Extractor

Name: Pilot-Scale Annular Centrifugal Extractor
Brand: Lexin-tech
SKU: pilot-scale-annular-centrifugal-extractor
Availability: InStock

PriceOn request — quoted against your specification

Lexin-tech is professional customized China Pilot-Scale Annular Centrifugal Extractor manufacturers,supplier and factory, specialized in providing customized Pilot-Scale Annular Centrifugal Extractor in stock with wholesale price. For quotation, contact us now.

Request a Quote

Built to order
Engineered against your feed assay and throughput
Bench & pilot tested
Sample testing before the flowsheet is frozen
Export documented
Pre-tested, skid-mounted, documented for customs
EN / ES / RU / AR
Technical support in four languages

SKU: pilot-scale-annular-centrifugal-extractor Categories: Liquid-Liquid Separation (Solvent Extraction), Centrifugal Extractor

Specifications

Extractor Type	Annular centrifugal extractor; two phases mixed in the annular gap between a stationary outer cylinder and a rotating perforated inner bowl
Rotor Diameter	110 mm / 150 mm pilot rotors (to be confirmed by test work)
Total Throughput (Both Phases)	20 - 150 L/h per unit (to be confirmed by test work)
Wetted Materials	316L stainless steel housing, rotor and weirs; PTFE seals; Hastelloy or titanium wetted parts optional for aggressive media
Drive	Top-mounted electric motor; bowl speed 1500 - 3000 rpm (to be confirmed by test work)
Phase Separation	Centrifugal fine-droplet separation; phase cut controlled by interchangeable heavy-phase and light-phase weir rings
Interface Control	Adjustable heavy-phase weir for phase interface positioning

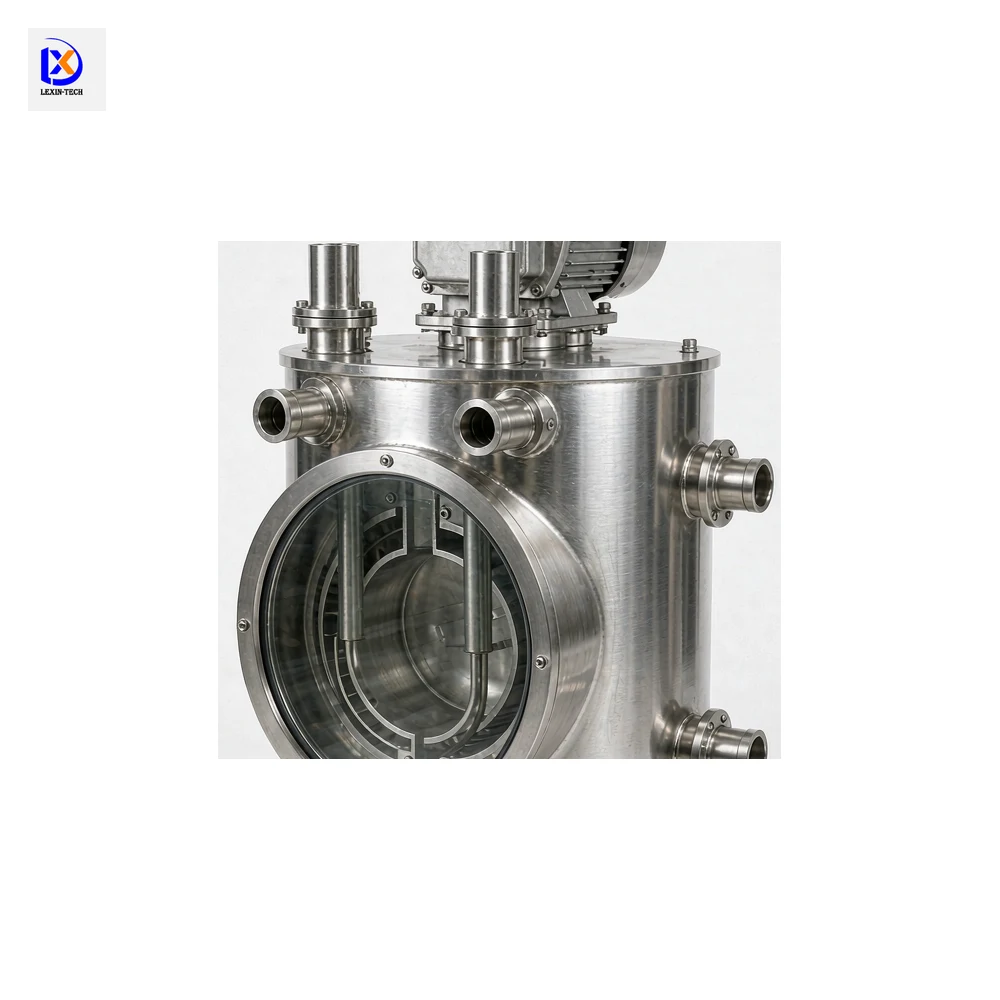

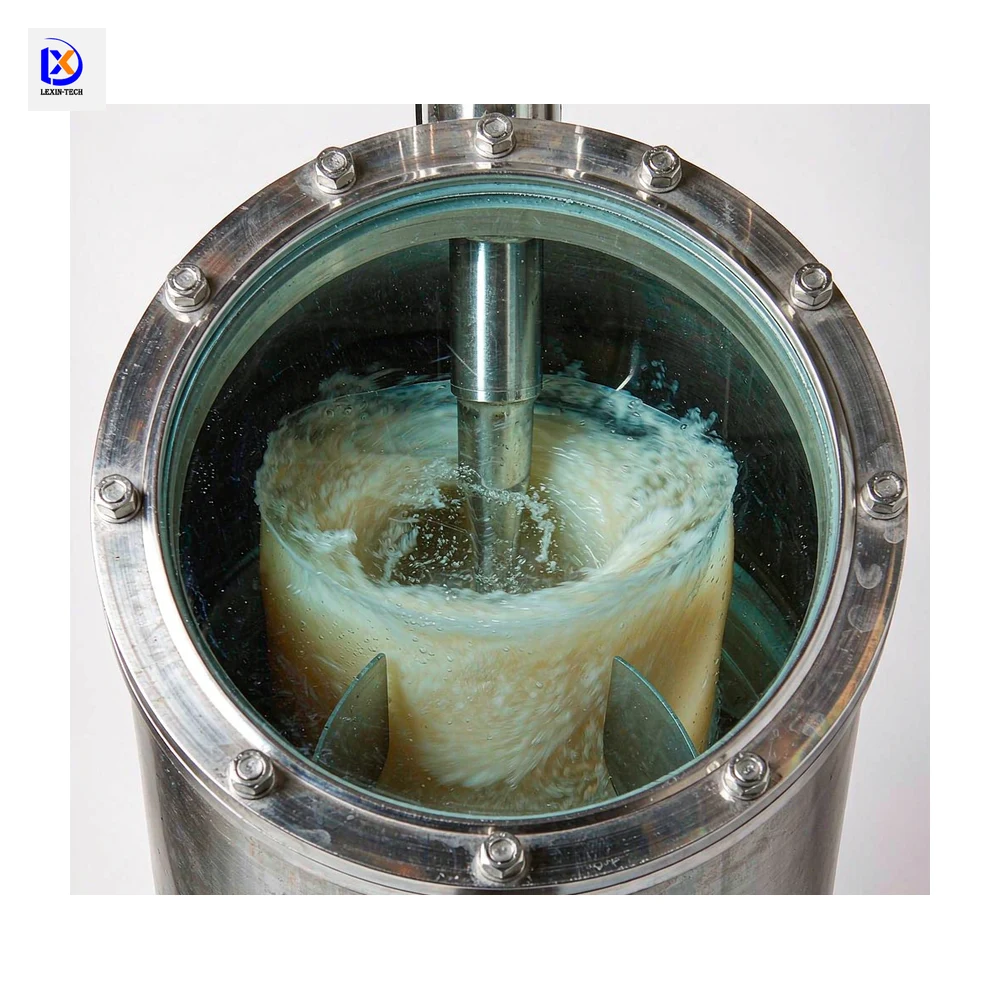

Ports	Heavy-phase and light-phase feed inlets, gravity overflow discharge outlets, circular sight window for annular-zone observation
Installation	Pilot frame-mounted single unit; multi-unit cascade arrangement available for countercurrent operation
Suitable System	Aqueous-organic systems free of fluoride and chloride, H2SO4 up to 150 g/L; fluoride/chloride media require lined, CPVC or titanium construction
