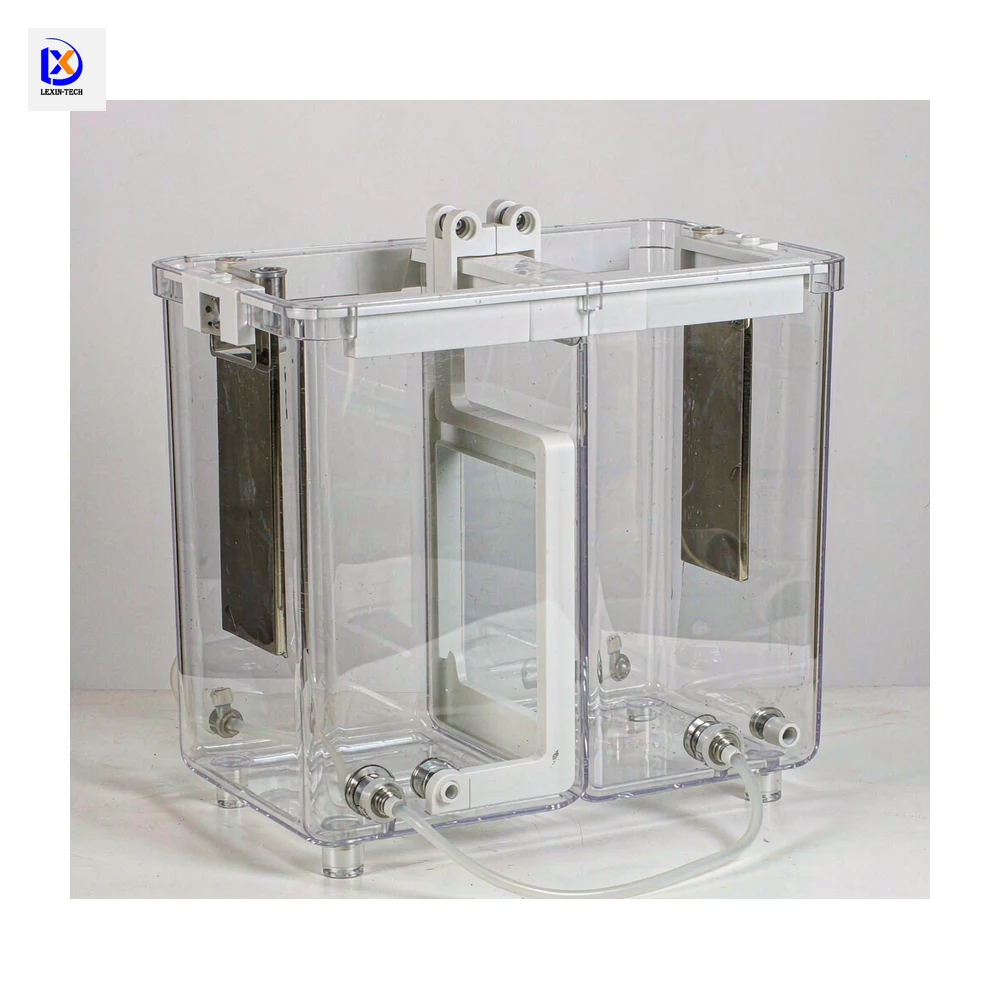

Lab-Scale Diaphragm Electrolytic Cell
PriceOn request — quoted against your specification
Lexin-tech is professional customized China Lab-Scale Diaphragm Electrolytic Cell manufacturers,supplier and factory, specialized in providing customized Lab-Scale Diaphragm Electrolytic Cell in stock with wholesale price. For quotation, contact us now.
- Built to order
Engineered against your feed assay and throughput - Bench & pilot tested
Sample testing before the flowsheet is frozen - Export documented
Pre-tested, skid-mounted, documented for customs - EN / ES / RU / AR
Technical support in four languages
Lexin-tech is professional customized China Lab-Scale Diaphragm Electrolytic Cell manufacturers,supplier and factory, specialized in providing customized Lab-Scale Diaphragm Electrolytic Cell in stock with wholesale price. For quotation, contact us now.
Specifications
| Cell Body Material | Transparent PMMA (acrylic); optional PP body for chloride-containing electrolytes |
|---|---|
| Cell Volume | 5 L / 10 L / 20 L bench-top configurations |
| Cell Configuration | Diaphragm frame divides the tank into separate anolyte and catholyte compartments |
| Diaphragm Type | Polymer felt diaphragm or cation-exchange membrane, mounted in a removable PP frame; diaphragm selection (to be confirmed by test work) |
| Anode | Insoluble anode: Pb-alloy or Ti-based MMO (DSA) plate, selected against the electrolyte system |
| Cathode | 316L stainless steel or pure titanium plate, polished surface |
| Electrode Gap | 30-80 mm, adjustable via diaphragm frame spacing |
| Electrode Connection | Top busbar support with Ti/Cu connection lugs |
| DC Power Supply | Matched external rectifier, typical 0-10 V / 0-100 A range (supplied per layout) |
| Operating Temperature | Ambient to 60 degrees C, atmospheric pressure |
| Applicable Systems | Sulfate electrowinning of Cu, Zn, Ni, Co; diaphragm service for Mn, Sb, Sn deposition systems. Chloride/fluoride media require PP or CPVC cell body and Ti/MMO anodes - confirm medium chemistry before ordering |
Values are the documented specifications for this model. Final dimensions are confirmed on the approved drawing before production.
Related products
-

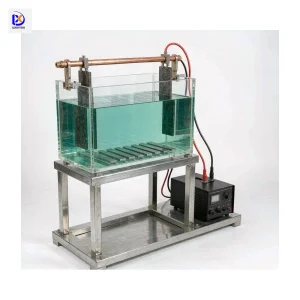

Lab-Scale Copper Electrowinning Cell
