Leaching Equipment

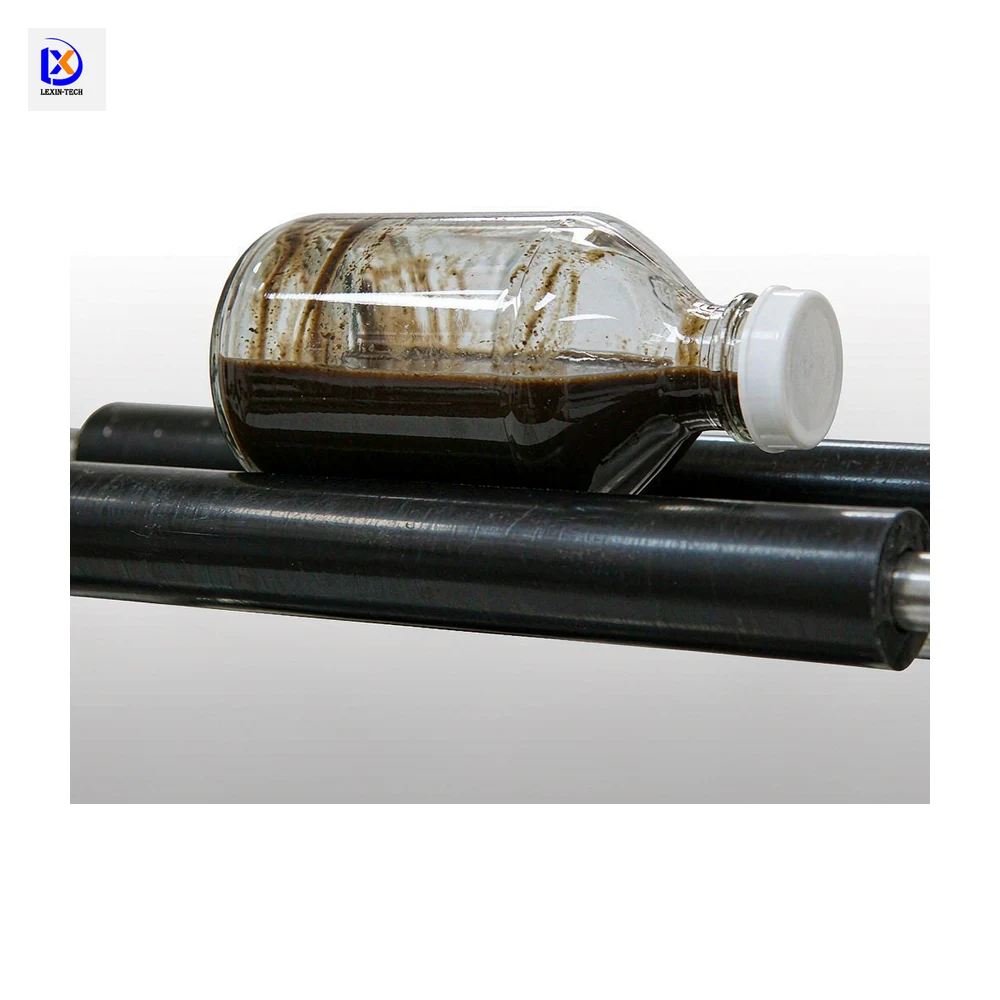

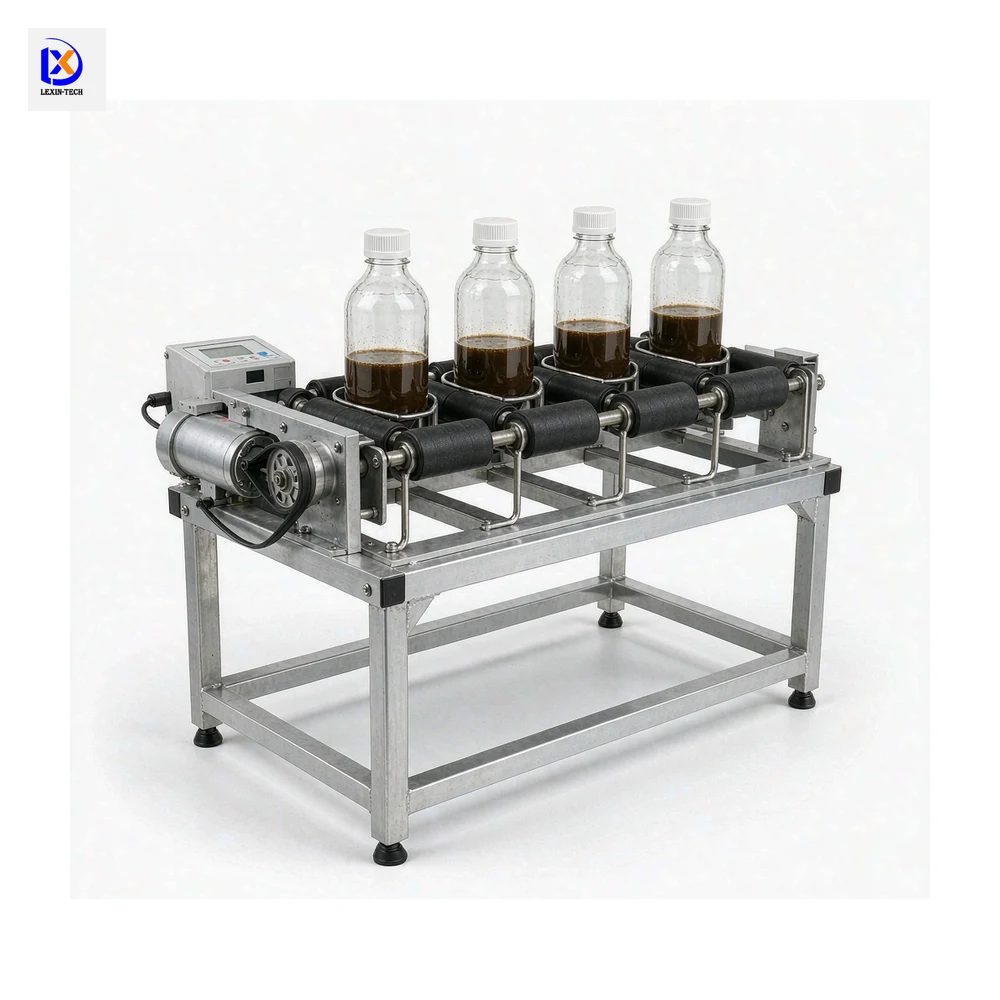

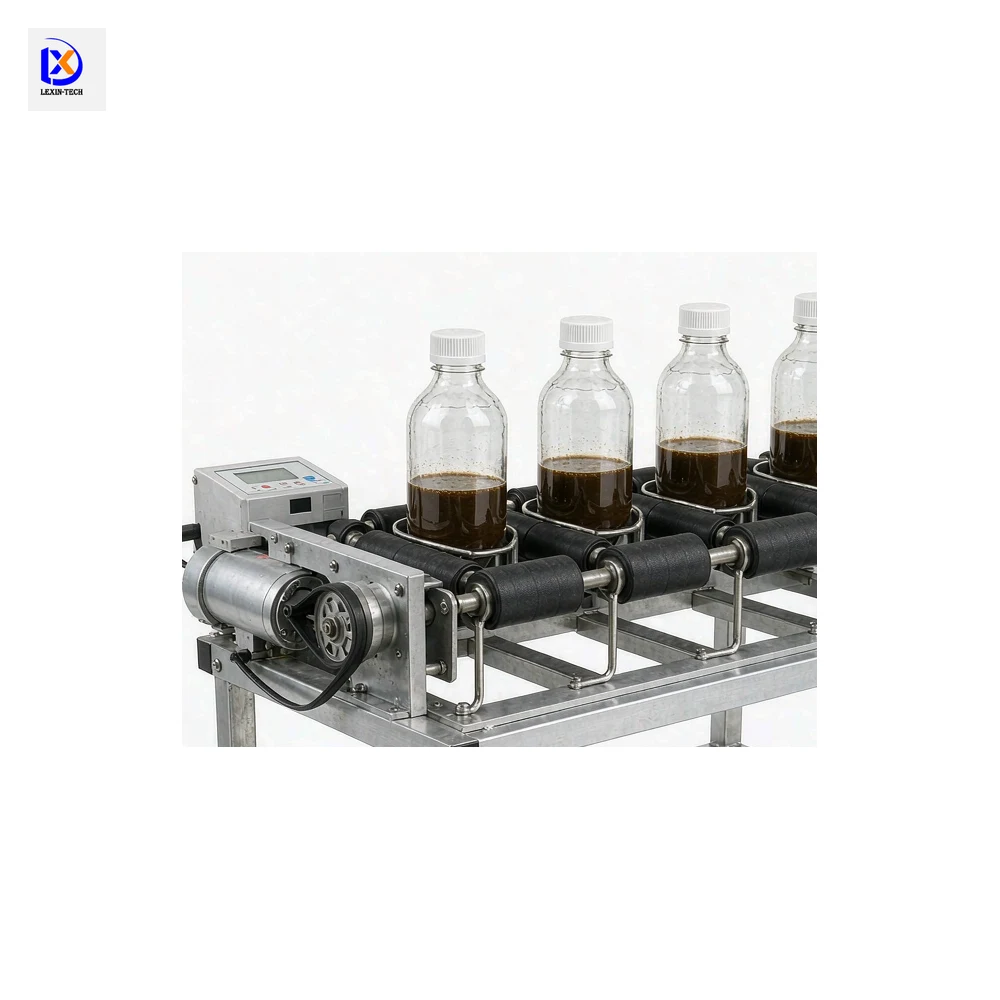

Laboratory Bottle Roll Leaching Test Machine
PriceOn request — quoted against your specification
Lexin-tech is professional customized China Laboratory Bottle Roll Leaching Test Machine manufacturers,supplier and factory, specialized in providing customized Laboratory Bottle Roll Leaching Test Machine in stock with wholesale price. For quotation, contact us now.
- Built to order
Engineered against your feed assay and throughput - Bench & pilot tested
Sample testing before the flowsheet is frozen - Export documented
Pre-tested, skid-mounted, documented for customs - EN / ES / RU / AR
Technical support in four languages
Lexin-tech is professional customized China Laboratory Bottle Roll Leaching Test Machine manufacturers,supplier and factory, specialized in providing customized Laboratory Bottle Roll Leaching Test Machine in stock with wholesale price. For quotation, contact us now.
Specifications
| Machine Type | Bench-top horizontal roller-bottle leach test machine (bottle roll agitator) |
|---|---|
| Bottle Stations | 4 stations standard; 2-station and 6-station frames available |
| Bottle Capacity | 500 mL to 5 L glass or PP reagent bottles, horizontal rolling on rubber roller pairs |
| Pulp Volume per Bottle | 30-70% of bottle volume, typically 50% |
| Rotation Speed | Variable 10-200 rpm with digital speed controller and rpm display |
| Drive Unit | Geared DC motor with timing belt drive, rated for continuous 24 h test runs |
| Rollers | Stainless steel shafts with wear-resistant rubber rollers |
| Frame Material | Powder-coated steel frame (optional 304 stainless frame for corrosive fume duty) |
| Operating Mode | Ambient temperature, sealed bottles; optional heated enclosure (to be confirmed by test work) |
| Applicable Systems | Gold/silver cyanidation leach kinetics, dilute acid agitation leaching (H2SO4 |
Values are the documented specifications for this model. Final dimensions are confirmed on the approved drawing before production.
Related products
-

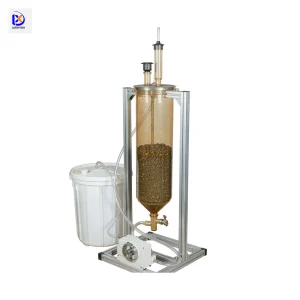

Lab-Scale Column Percolation Leaching Unit
