Pilot-Scale Carbon-in-Column (CIC) Adsorption Unit
PriceOn request — quoted against your specification
Lexin-tech is professional customized China Pilot-Scale Carbon-in-Column (CIC) Adsorption Unit manufacturers,supplier and factory, specialized in providing customized Pilot-Scale Carbon-in-Column (CIC) Adsorption Unit in stock with wholesale price. For quotation, contact us now.
- Built to order
Engineered against your feed assay and throughput - Bench & pilot tested
Sample testing before the flowsheet is frozen - Export documented
Pre-tested, skid-mounted, documented for customs - EN / ES / RU / AR
Technical support in four languages
Lexin-tech is professional customized China Pilot-Scale Carbon-in-Column (CIC) Adsorption Unit manufacturers,supplier and factory, specialized in providing customized Pilot-Scale Carbon-in-Column (CIC) Adsorption Unit in stock with wholesale price. For quotation, contact us now.
Specifications

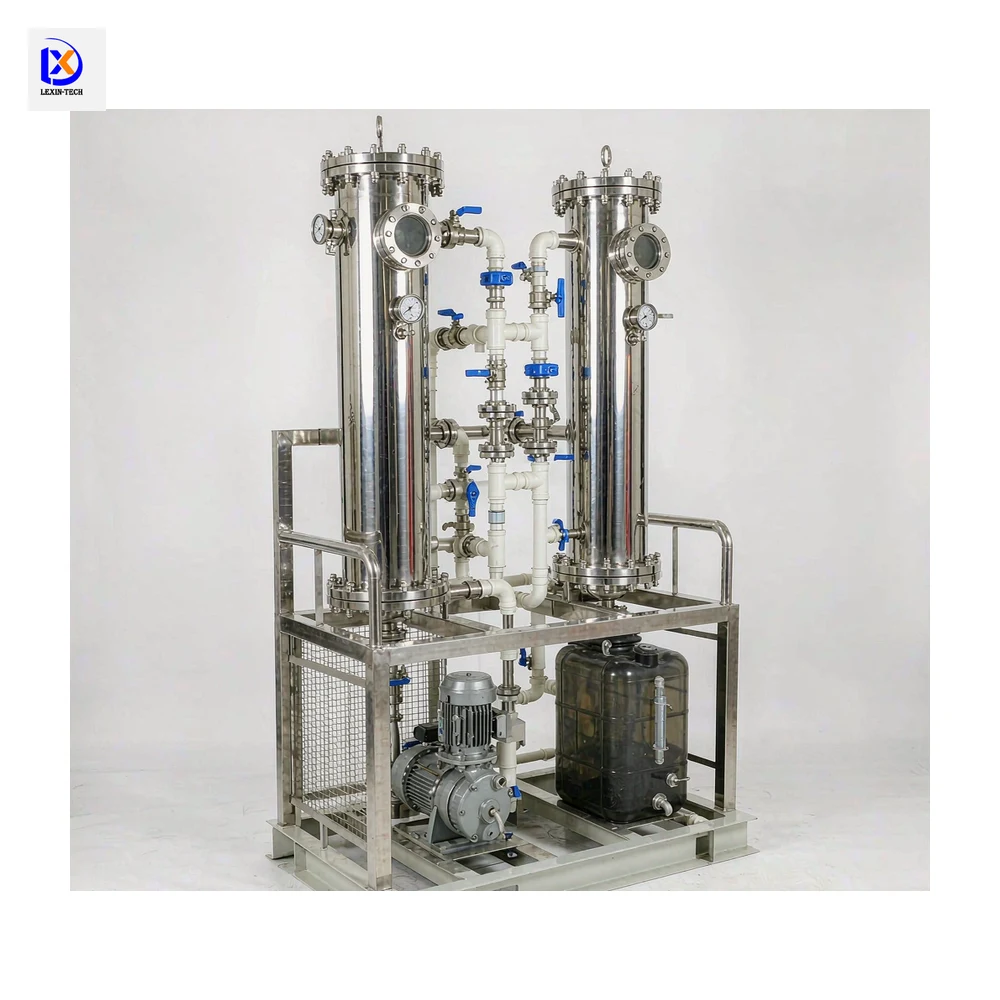

| Unit Type | Pilot-scale carbon-in-column (CIC) adsorption unit, two columns in series with lead/lag changeover valving, for gold and silver recovery from clarified leach solutions |
|---|---|

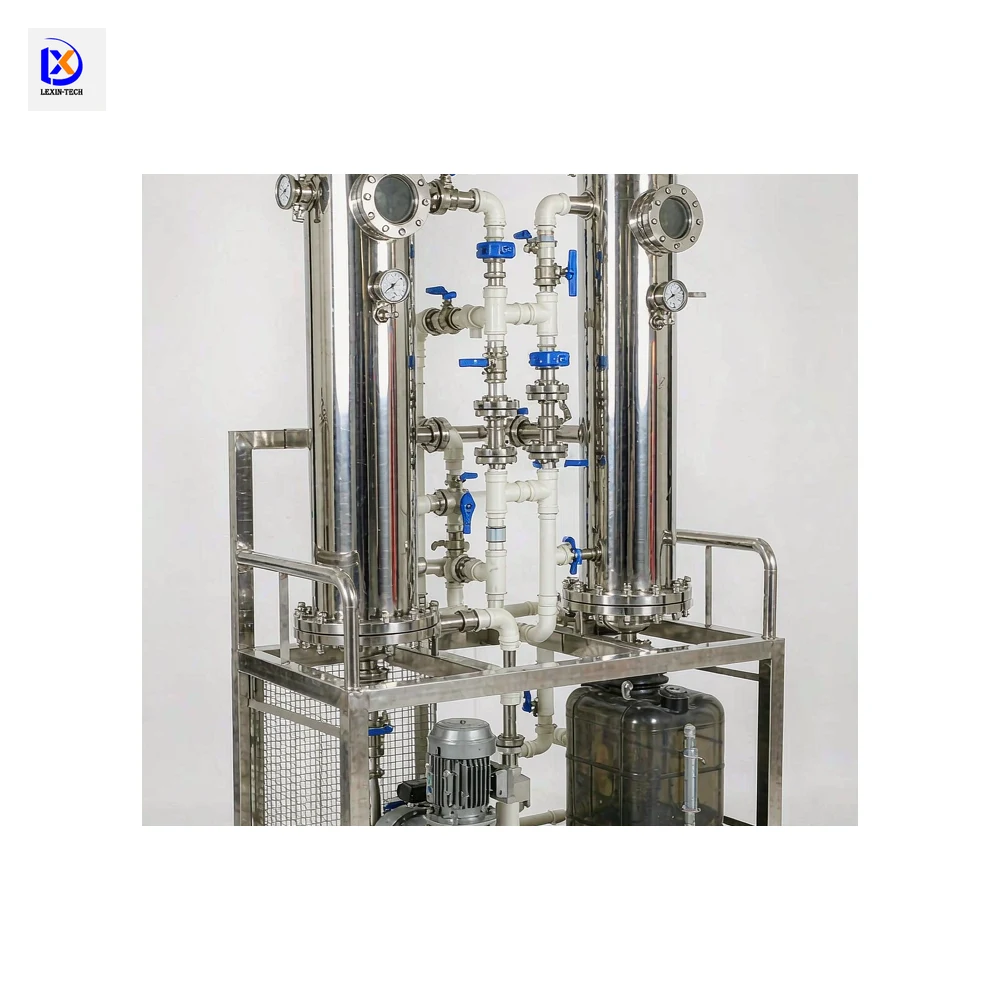

| Column Configuration | 2 x vertical adsorption columns, ID 200 mm x 2000 mm straight shell, bolted flanged top and bottom heads; single-column and 3-4 column trains on request |
| Column Material | 316L stainless steel shells with round sight glasses; PP or rubber-lined columns available for chloride-bearing liquors (to be confirmed by test work) |
| Carbon Charge | 10-40 kg granular activated carbon (6x12 mesh) per column; carbon retention screen, 0.7-0.85 mm slot, fitted at the column outlet |
| Solution Flow Rate | 0.2-2 m3/h per column; up-flow or down-flow mode selected by valve arrangement |
| Carbon Transfer | Centrifugal transfer pump with carbon eductor option for carbon movement between columns; interstage screening arrangement to be confirmed by test work |

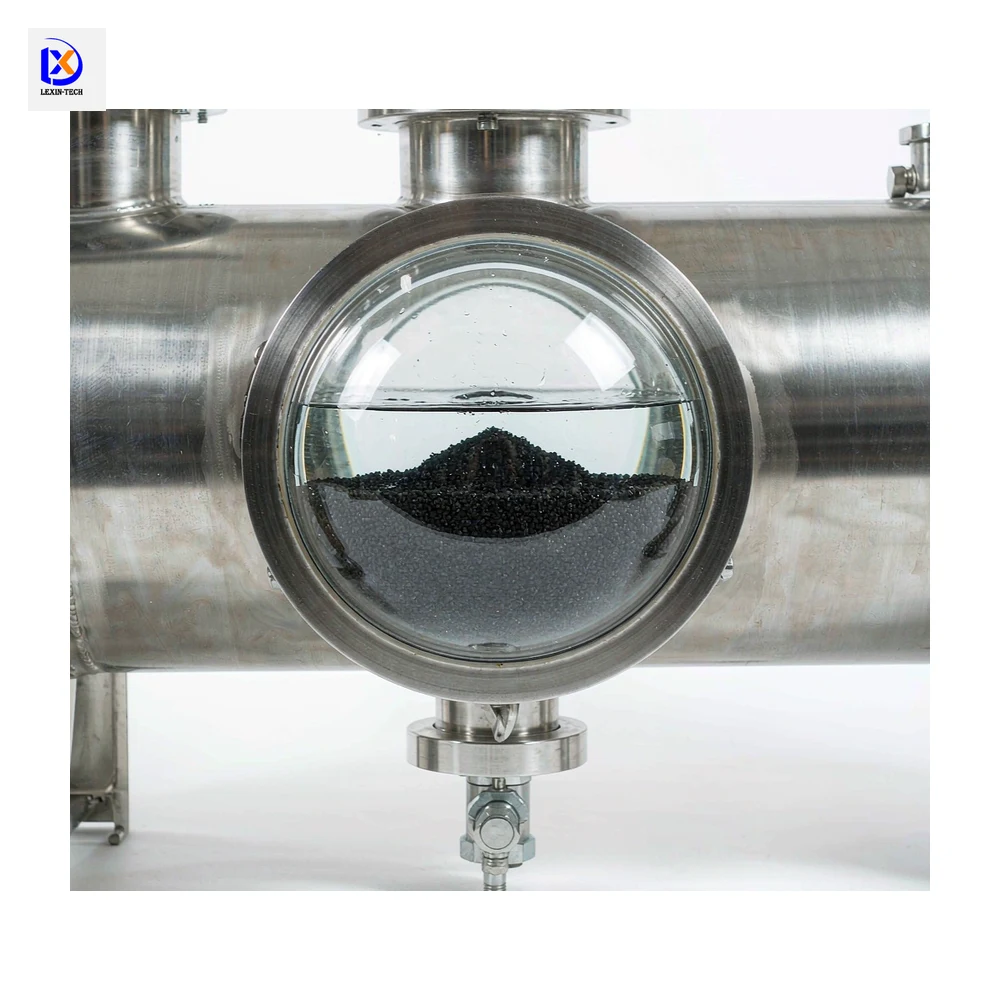

| Instrumentation | Pressure gauge on each column head, sight glasses for carbon bed level check, sampling valves on column inlet and outlet |
| Solution Tank | 200 L PE feed/collect tank with level tube; larger stainless steel tanks on request |
| Skid & Utilities | Stainless steel skid frame, footprint approx. 1.5 x 0.8 m; requires 220 V single-phase power and compressed air |
| Applicable Systems | Clarified neutral to mildly acidic cyanide or acid liquors (H2SO4 500 mg/L or fluoride-bearing liquors require PP/rubber-lined wetted parts; carbon-in-column is NOT suitable for pulp feeds - use CIL/CIP duty instead |
Values are the documented specifications for this model. Final dimensions are confirmed on the approved drawing before production.
