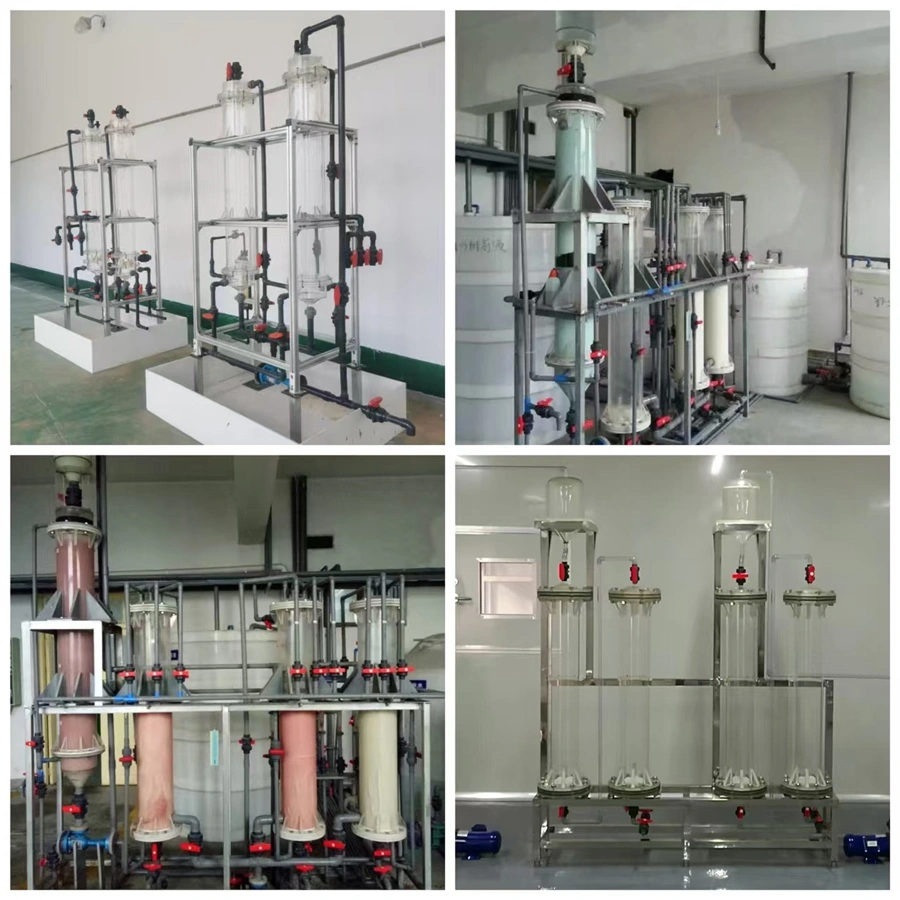

Pmma Ion Exchange Unit
Custom-built ion exchange unit for laboratory and pilot-scale hydrometallurgical test work.
Overview
The Pmma Ion Exchange Unit is built for hydrometallurgical test work at ion exchange unit stage. Material of construction, capacity and control configuration are matched to the feed chemistry rather than taken from a fixed catalogue.
Specifications
| Exchange Column Material | Acrylic (PMMA) |
|---|---|
| Column Diameter (mm) | 100, 150, 200, 300, 350, 400, 500, 600 |
| Infusion Pump Type | Metering Pump / Gear Pump |
| Flowmeter Options | Electromagnetic Flowmeter / Turbine or Vortex Flowmeter / Float Flowmeter |
| Frame Material | Carbon Steel (Anti-corrosion) / SUS 304 |
| Control System | Button/Knob Control / Touchscreen Interface |
| Customization | Customized skid-mounted packages are available. The package primarily consists of an ion exchange system, equipment frame, liquid infusion and flow metering system, control system, storage tanks, and other components. |
FAQ
Can the Pmma Ion Exchange Unit be customized?
Yes. Capacity, material of construction, heating method and control system are configured to your flowsheet. Send the process data and we confirm the feasible range.
What is the lead time?
Typically 4–8 weeks for lab units and 8–14 weeks for pilot units, depending on material availability. Confirmed at order.
Do you supply test data with the unit?
We supply the sizing calculation and, when a lab campaign is part of the order, the test report for the material you provided.
Related Equipment
Tell us your flowsheet. We size the equipment.
Share feed material, throughput and medium — our engineers reply with a preliminary configuration and a real quotation.
