Pilot-Scale Continuous Solvent Extraction Mini-Plant (Feed-Scrub-Strip Skid)

Liquid-Liquid Separation (Solvent Extraction)

Pilot-Scale Continuous Solvent Extraction Mini-Plant (Feed-Scrub-Strip Skid)

Name: Pilot-Scale Continuous Solvent Extraction Mini-Plant (Feed-Scrub-Strip Skid)
Brand: Lexin-tech
SKU: pilot-scale-continuous-solvent-extraction-mini-plant
Availability: InStock

PriceOn request — quoted against your specification

Lexin-tech is professional customized China Pilot-Scale Continuous Solvent Extraction Mini-Plant (Feed-Scrub-Strip Skid) manufacturers,supplier and factory, specialized in providing customized Pilot-Scale Continuous Solvent Extraction Mini-Plant (Feed-Scrub-Strip Skid) in stock with wholesale price. For quotation, contact us now.

Request a Quote

Built to order
Engineered against your feed assay and throughput
Bench & pilot tested
Sample testing before the flowsheet is frozen
Export documented
Pre-tested, skid-mounted, documented for customs
EN / ES / RU / AR
Technical support in four languages

SKU: pilot-scale-continuous-solvent-extraction-mini-plant Categories: Liquid-Liquid Separation (Solvent Extraction), Mixer-Settler

Specifications

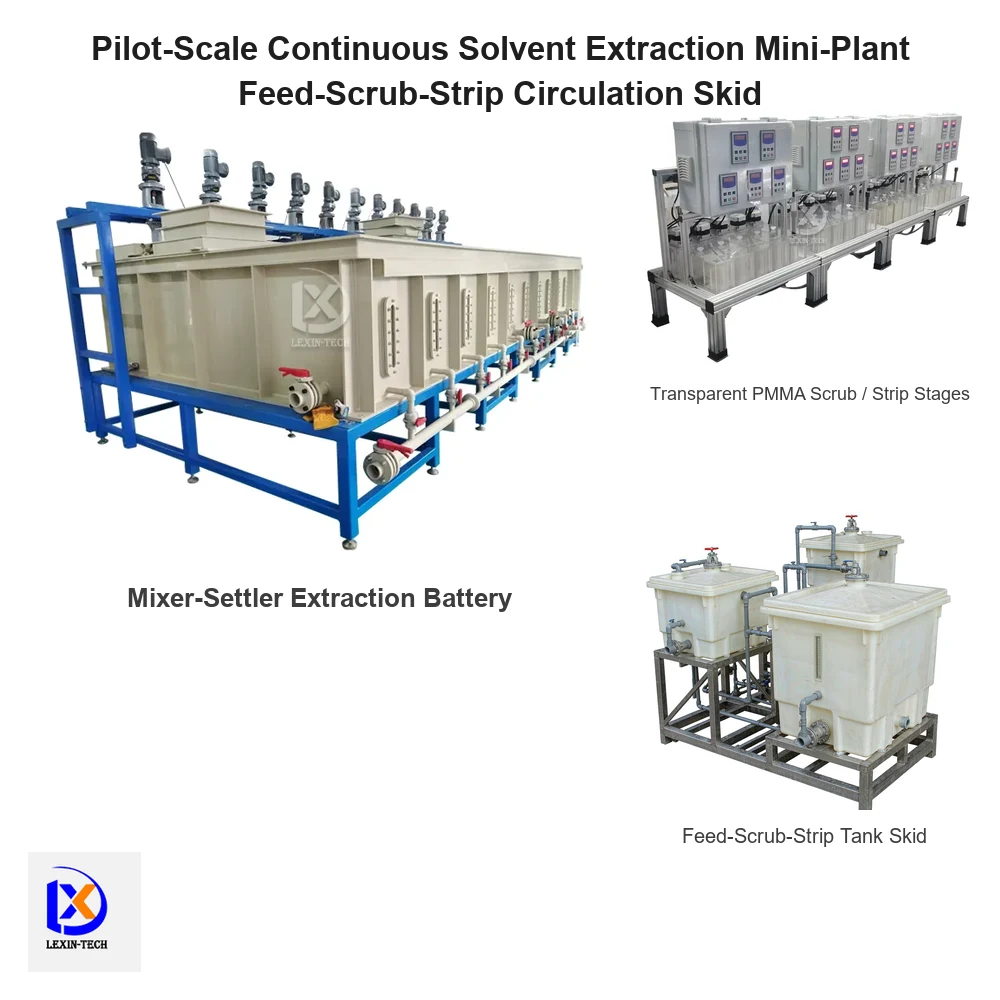

Plant Configuration	Continuous counter-current mini-plant: extraction, scrub and strip mixer-settler stages plus feed/scrub/strip tank skid, closed organic circulation between stages
Stage Count	Extraction 2-4 stages, scrub 1-2 stages, strip 1-2 stages; stage count and arrangement configured to the client flowsheet (to be confirmed by test work)

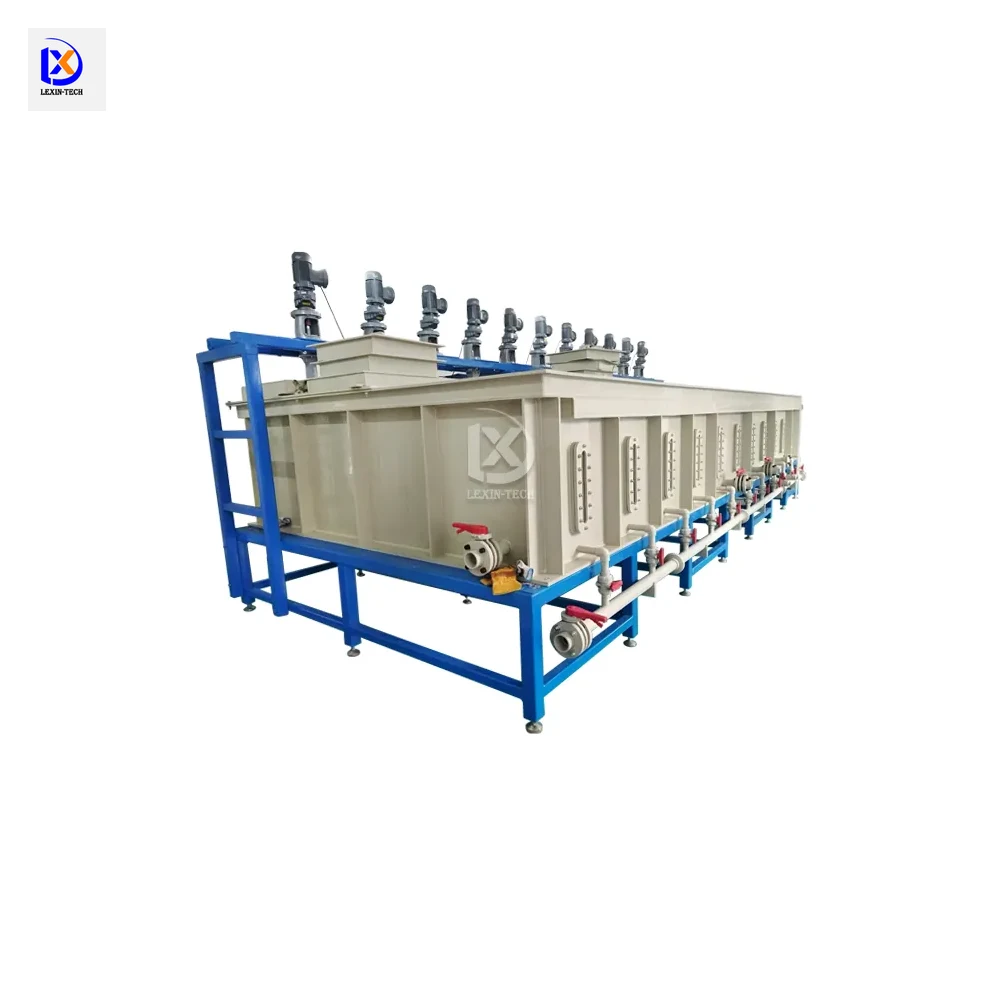

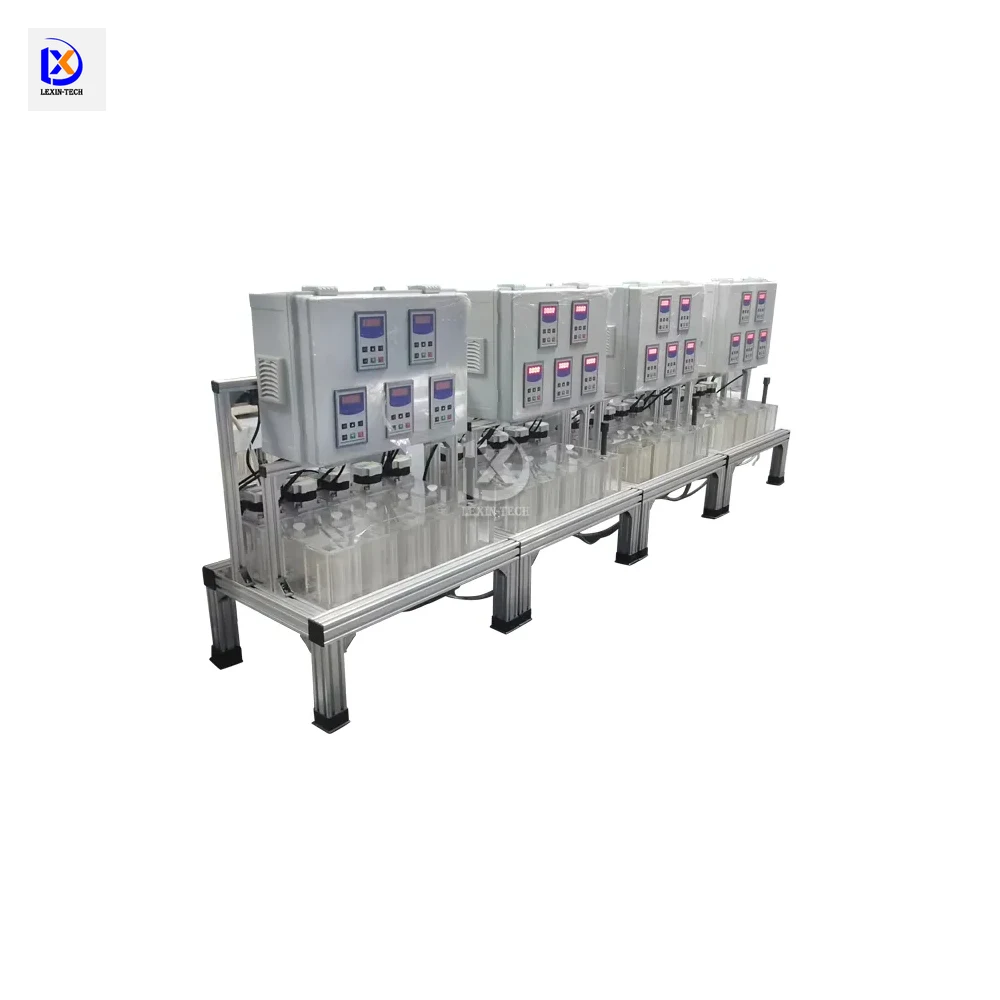

Mixer-Settler Construction	Polypropylene (PP) welded stage boxes on steel support frame; transparent PMMA module option for scrub/strip stages for two-phase observation
Stage Volume	Mixer 5 - 30 L per stage with top-mounted agitator; settler 2 - 4x mixer volume with adjustable phase weir
Agitation	Per-stage electric agitator with variable speed 0 - 500 rpm; individual digital speed control per mixer compartment

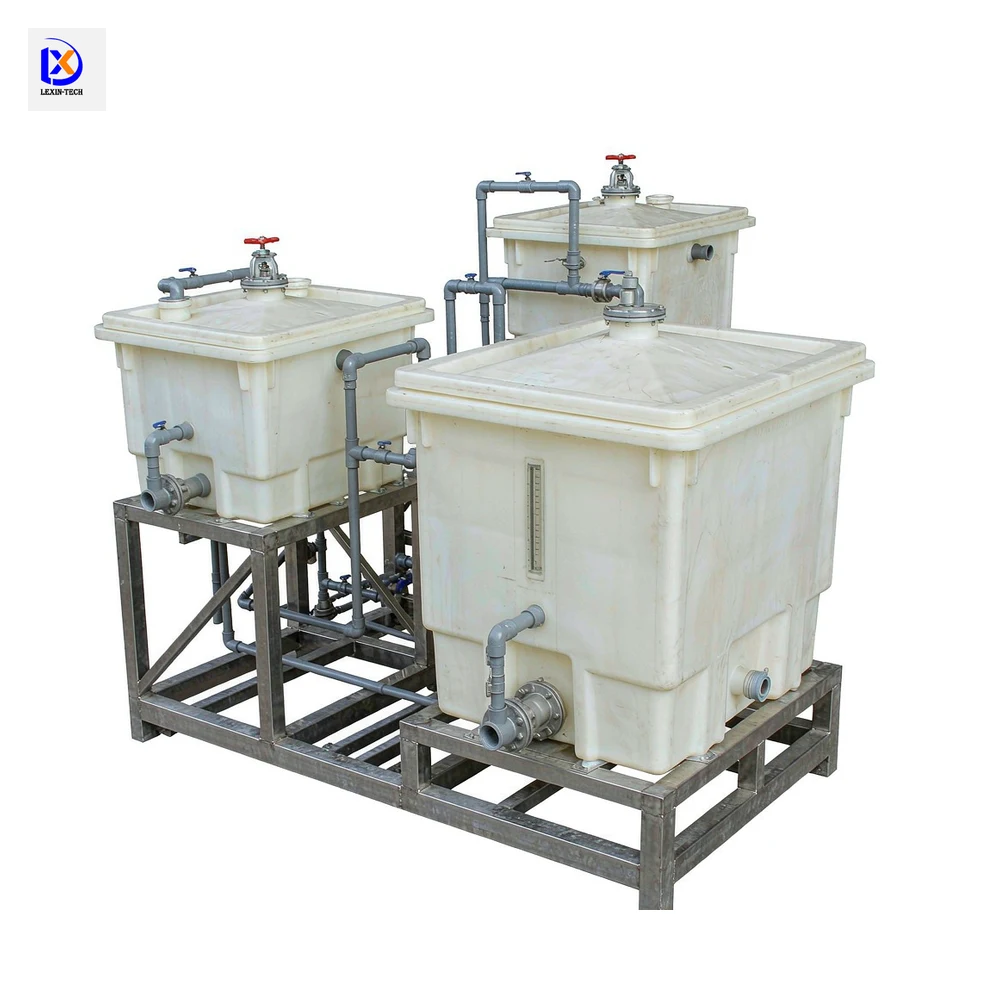

Tank Skid	PP feed, scrub and strip storage tanks with visual level gauges, bottom butterfly valves, magnetic metering pumps and PVC/CPVC interconnecting piping on a stainless skid
Total Throughput (Aqueous Feed)	10 - 100 L/h pilot range (to be confirmed by test work)
Interstage Transfer	Gravity overflow between adjacent stages; optional interstage pumps for level-independent operation
Operating Temperature	Ambient to 60 C
Suitable System	Aqueous-organic systems free of fluoride and chloride, H2SO4 up to 150 g/L; fluoride/chloride media require lined, CPVC or titanium construction
