Pilot-Scale Pulsed Sieve-Plate Extraction Column

Liquid-Liquid Separation (Solvent Extraction)

Pilot-Scale Pulsed Sieve-Plate Extraction Column

Name: Pilot-Scale Pulsed Sieve-Plate Extraction Column
Brand: Lexin-tech
SKU: pilot-scale-pulsed-sieve-plate-extraction-column
Availability: InStock

PriceOn request — quoted against your specification

Lexin-tech is professional customized China Pilot-Scale Pulsed Sieve-Plate Extraction Column manufacturers,supplier and factory, specialized in providing customized Pilot-Scale Pulsed Sieve-Plate Extraction Column in stock with wholesale price. For quotation, contact us now.

Request a Quote

Built to order
Engineered against your feed assay and throughput
Bench & pilot tested
Sample testing before the flowsheet is frozen
Export documented
Pre-tested, skid-mounted, documented for customs
EN / ES / RU / AR
Technical support in four languages

SKU: pilot-scale-pulsed-sieve-plate-extraction-column Categories: Liquid-Liquid Separation (Solvent Extraction), Extraction Column

Specifications

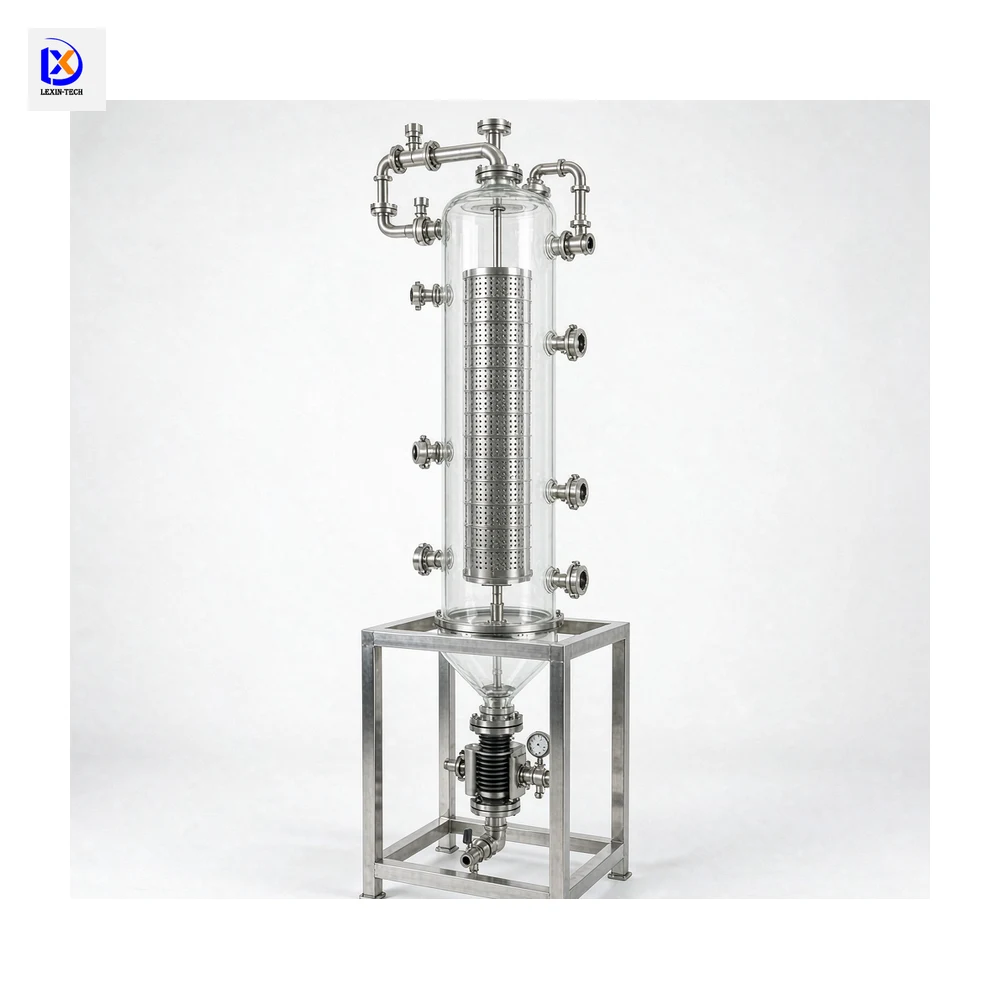

Column Type	Pulsed sieve-plate extraction column, reciprocating air-pulse agitation, no rotating parts inside the column
Column Size	Column ID 50-100 mm, active height 1.5-3.0 m, pilot scale

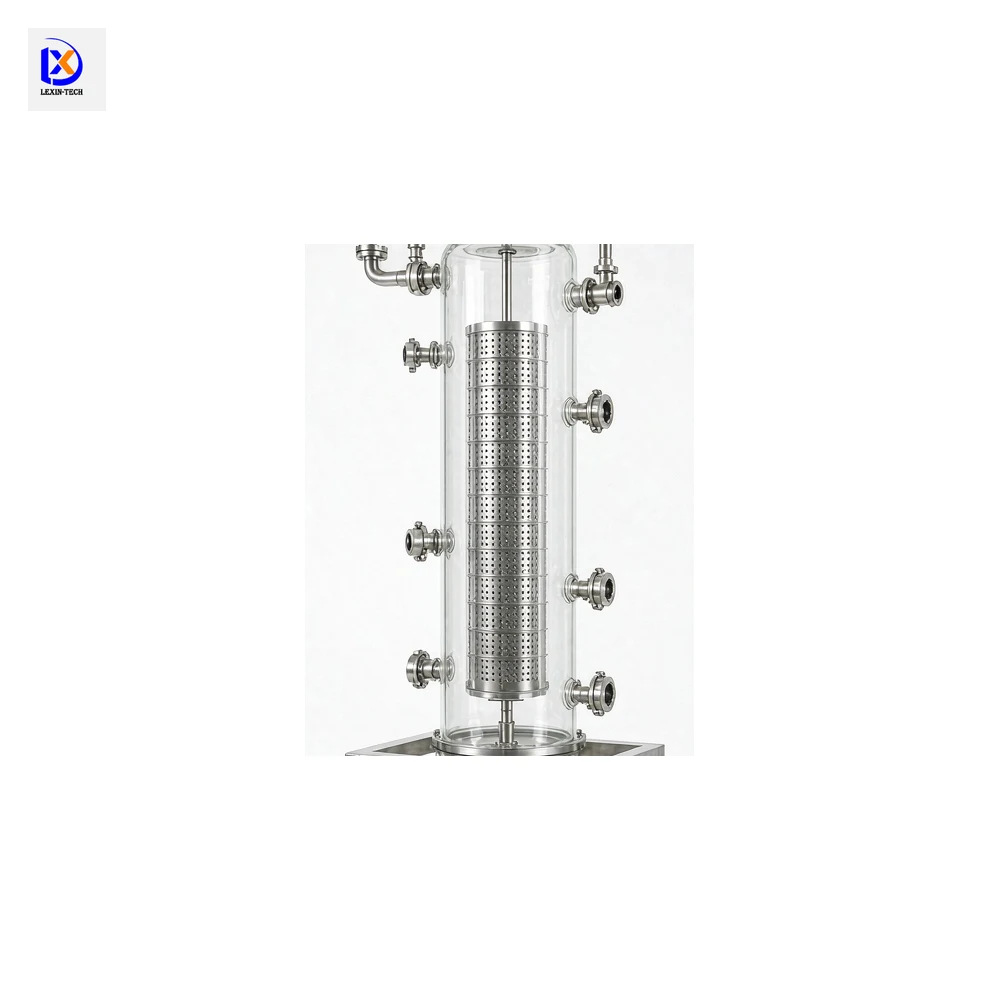

Column Material	Borosilicate glass 3.3 shell with 316L stainless steel sieve-plate cartridge; PTFE-lined or titanium cartridge for chloride-containing systems

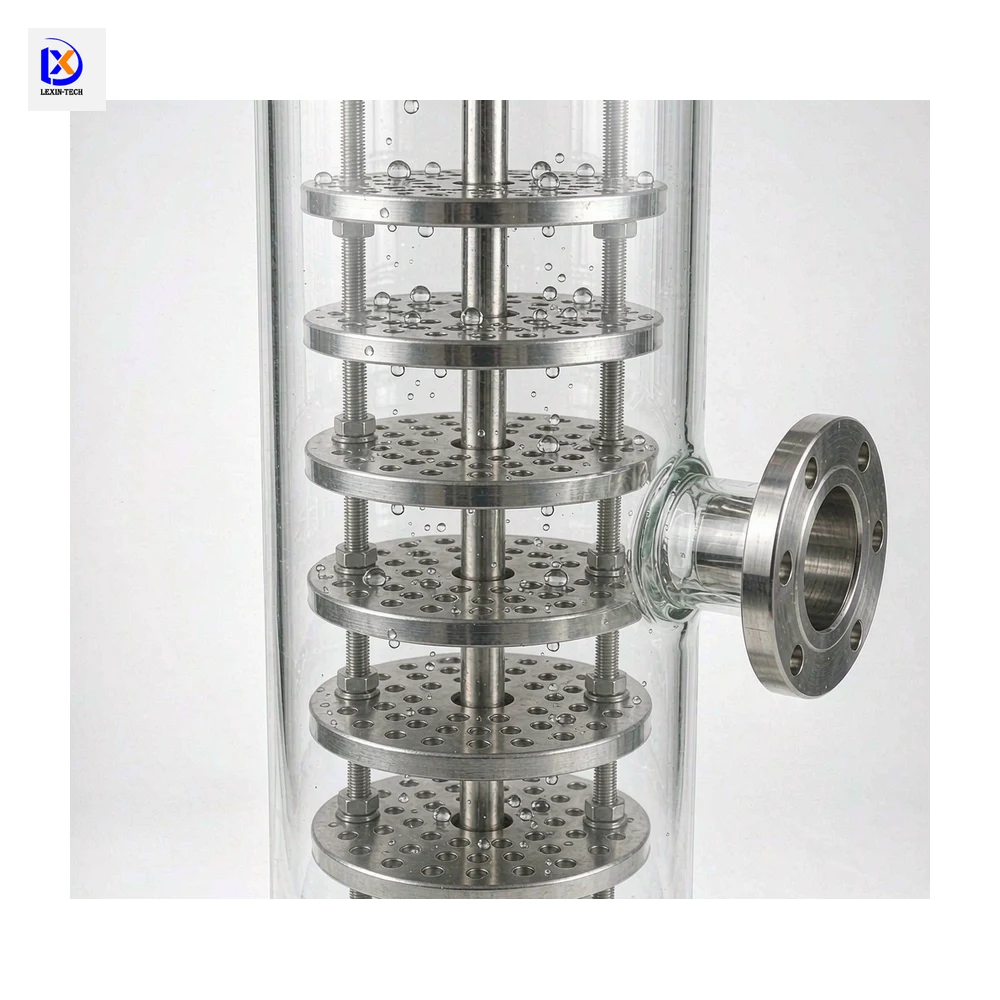

Sieve Plates	Perforated 316L plates, 2-5 mm holes, 20-30% free area, plate spacing 50-100 mm, stacked on a central tie rod
Pulsation	Air-pulse bellows unit at the column base with pressure gauge, frequency 0-120 strokes/min, amplitude adjustable (to be confirmed by test work)
Throughput	Total (aqueous + organic) 5-50 L/h depending on system and plate configuration (to be confirmed by test work)
Temperature Range	Ambient to 80 C with glass column; jacketed heated variant available on request
Nozzles & Controls	Feed and discharge side nozzles, top and bottom; optional interface control and sampling points between sections
Wetted Materials Boundary	Suitable for H2SO4
Frame & Utilities	Stainless steel support frame with leveling feet; 220 V/50 Hz instrument power
