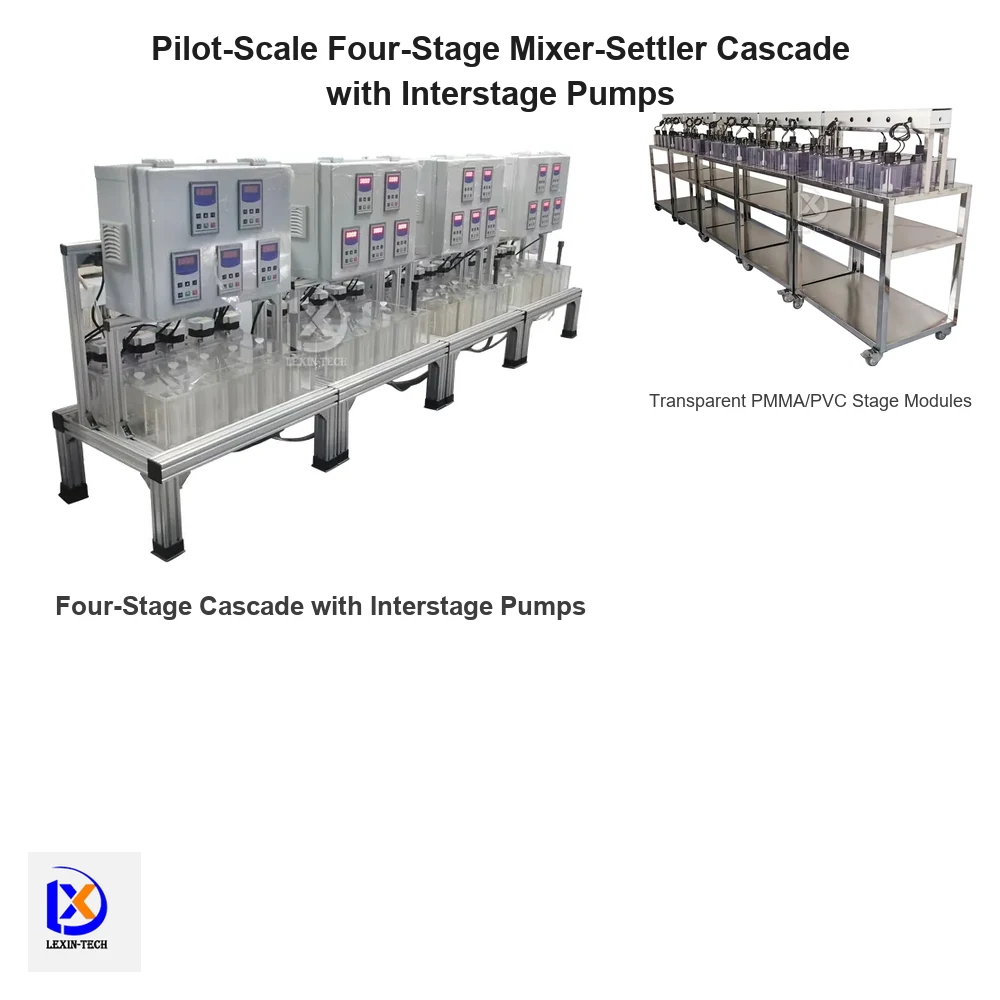

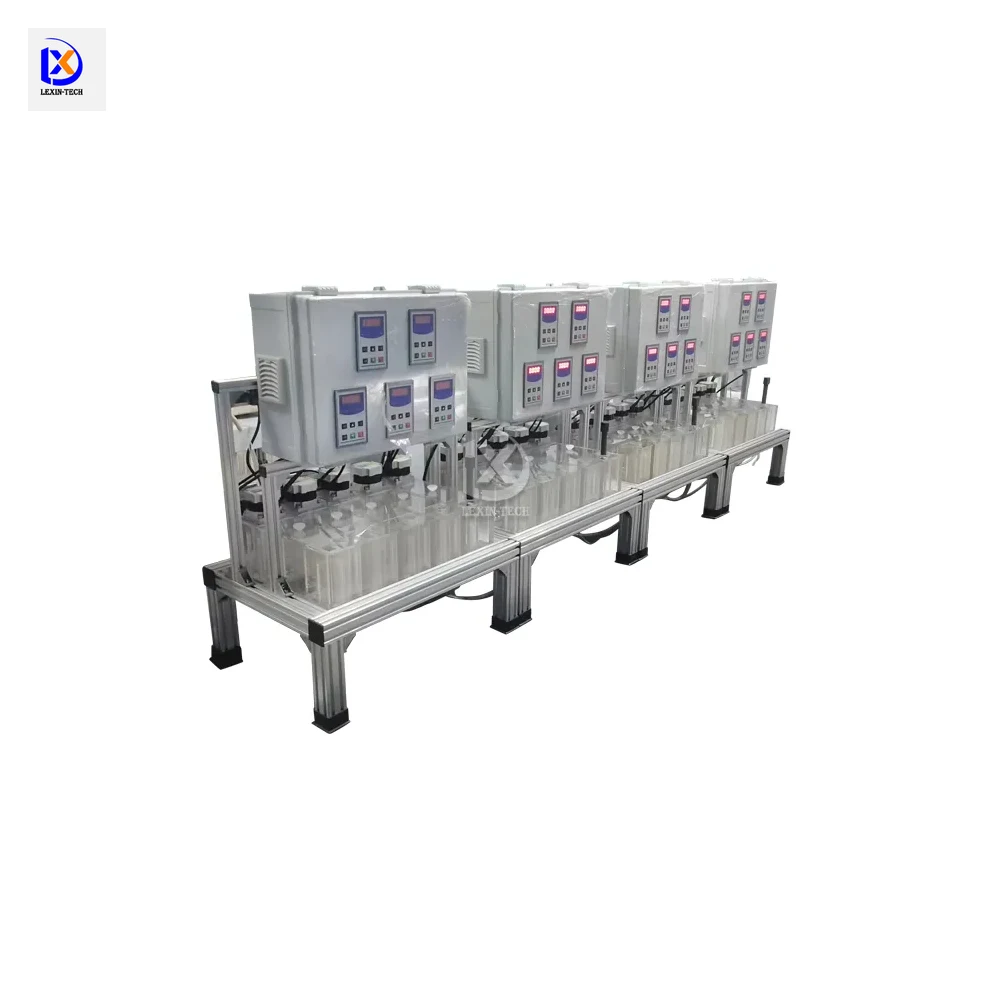

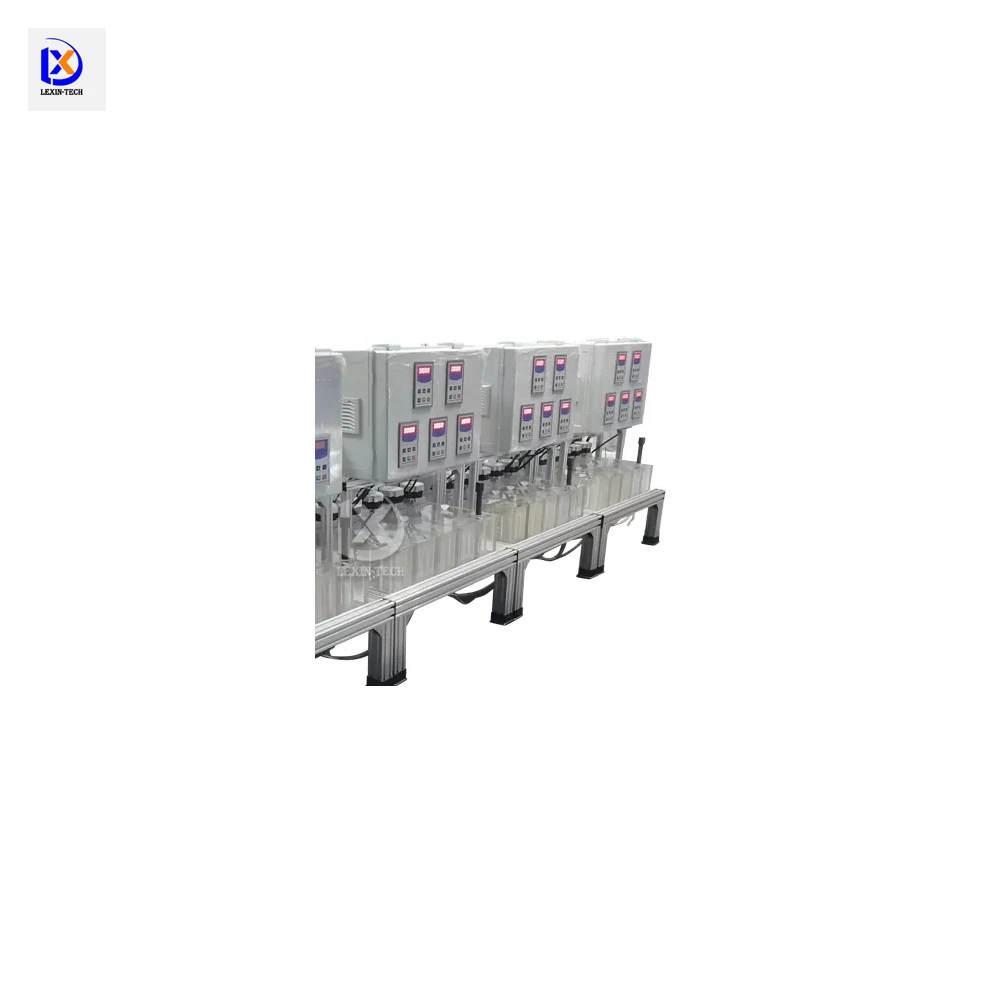

Pilot-Scale Four-Stage Mixer-Settler Cascade (with Interstage Pumps)
PriceOn request — quoted against your specification
Lexin-tech is professional customized China Pilot-Scale Four-Stage Mixer-Settler Cascade (with Interstage Pumps) manufacturers,supplier and factory, specialized in providing customized Pilot-Scale Four-Stage Mixer-Settler Cascade (with Interstage Pumps) in stock with wholesale price. For quotation, contact us now.
- Built to order
Engineered against your feed assay and throughput - Bench & pilot tested
Sample testing before the flowsheet is frozen - Export documented
Pre-tested, skid-mounted, documented for customs - EN / ES / RU / AR
Technical support in four languages
Lexin-tech is professional customized China Pilot-Scale Four-Stage Mixer-Settler Cascade (with Interstage Pumps) manufacturers,supplier and factory, specialized in providing customized Pilot-Scale Four-Stage Mixer-Settler Cascade (with Interstage Pumps) in stock with wholesale price. For quotation, contact us now.
Specifications
| Number of Stages | 4 mixer-settler stages in series (3-6 stages available on request) |
|---|---|
| Stage Configuration | Box-type mixer-settler per stage: mixing compartment with turbine agitator, settling compartment with baffle; stages connected in countercurrent cascade |
| Working Volume per Stage | Mixer 3-10 L, settler 10-30 L per stage (to be confirmed by test work) |
| Interstage Transfer | Per-stage interstage pump with independent flow control; aqueous and organic flows adjustable separately |
| Agitation | Variable-speed turbine impeller per stage, 0-1500 rpm, individual digital speed control panel |
| Wetted Materials | Transparent PMMA/PVC for aqueous systems pH 2-13; PP/PPH or SS316L for stronger media (H2SO4 |
| Temperature Range | Ambient to 60 C with PMMA/PVC; up to 80 C with PP/PPH wetted parts |
| Throughput | Total throughput 10-50 L/h depending on stage volume and residence time (to be confirmed by test work) |
| Instrumentation | Per-stage digital speed display; optional pH/ORP and temperature monitoring |
| Frame & Utilities | Anodized aluminum profile frame with leveling feet; 220 V/50 Hz, per-stage motor 90-120 W |
Values are the documented specifications for this model. Final dimensions are confirmed on the approved drawing before production.
Related products
-
-
50mm Rotary Drum Centrifugal Extractor
PriceOn request — quoted against your specification -
-

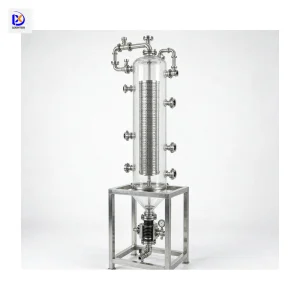

Pilot-Scale Pulsed Sieve-Plate Extraction Column
