Liquid-Liquid Separation (Solvent Extraction)

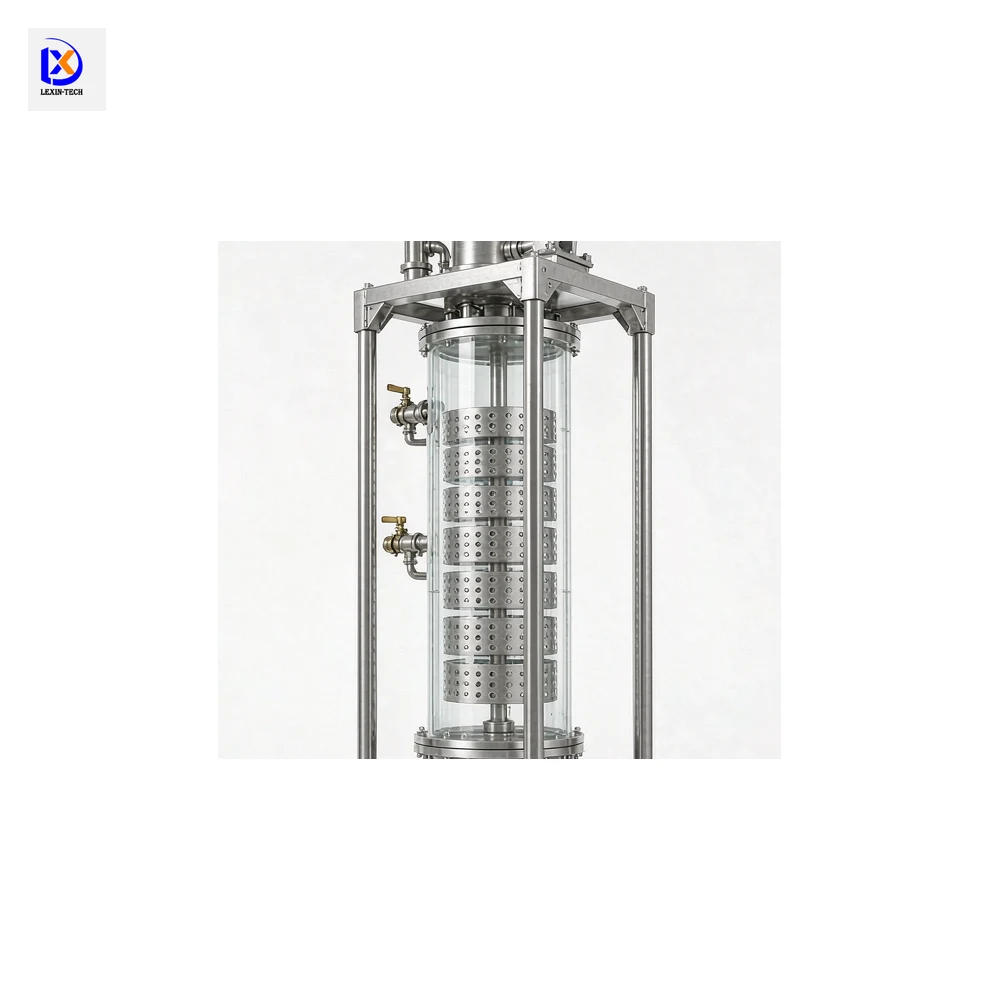

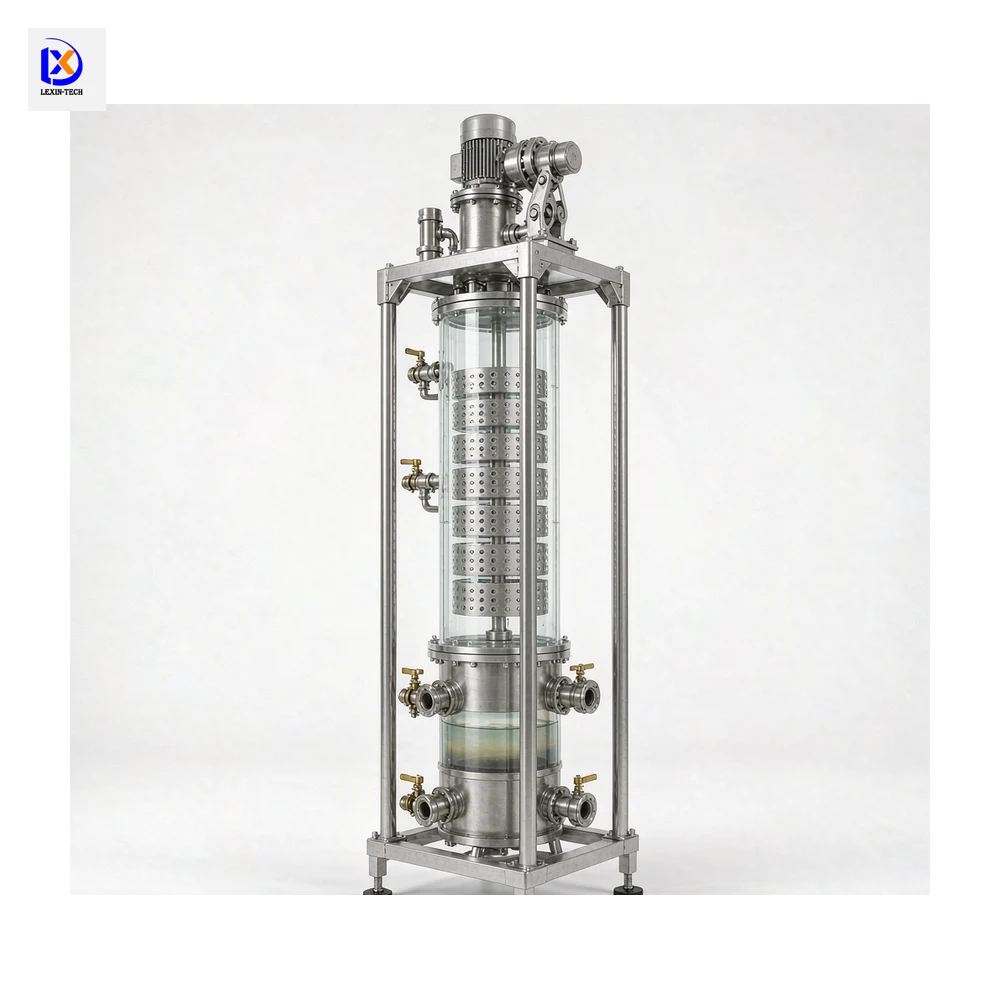

Pilot-Scale Reciprocating-Plate Extraction Column
PriceOn request — quoted against your specification
Lexin-tech is professional customized China Pilot-Scale Reciprocating-Plate Extraction Column manufacturers,supplier and factory, specialized in providing customized Pilot-Scale Reciprocating-Plate Extraction Column in stock with wholesale price. For quotation, contact us now.
- Built to order
Engineered against your feed assay and throughput - Bench & pilot tested
Sample testing before the flowsheet is frozen - Export documented
Pre-tested, skid-mounted, documented for customs - EN / ES / RU / AR
Technical support in four languages
Lexin-tech is professional customized China Pilot-Scale Reciprocating-Plate Extraction Column manufacturers,supplier and factory, specialized in providing customized Pilot-Scale Reciprocating-Plate Extraction Column in stock with wholesale price. For quotation, contact us now.
Specifications
| Column Type | Reciprocating-plate (Karr-type) extraction column; stack of perforated plates reciprocated on a central shaft |
|---|---|
| Column Diameter | DN100 / DN150 / DN200 pilot sizes (to be confirmed by test work) |
| Active Plate-Stacked Height | 1.5 - 3 m, built from interchangeable borosilicate glass sight modules |
| Wetted Materials | 316L stainless steel column ends, flanges, plates and frame; GG17 borosilicate glass shell section; PTFE gaskets |

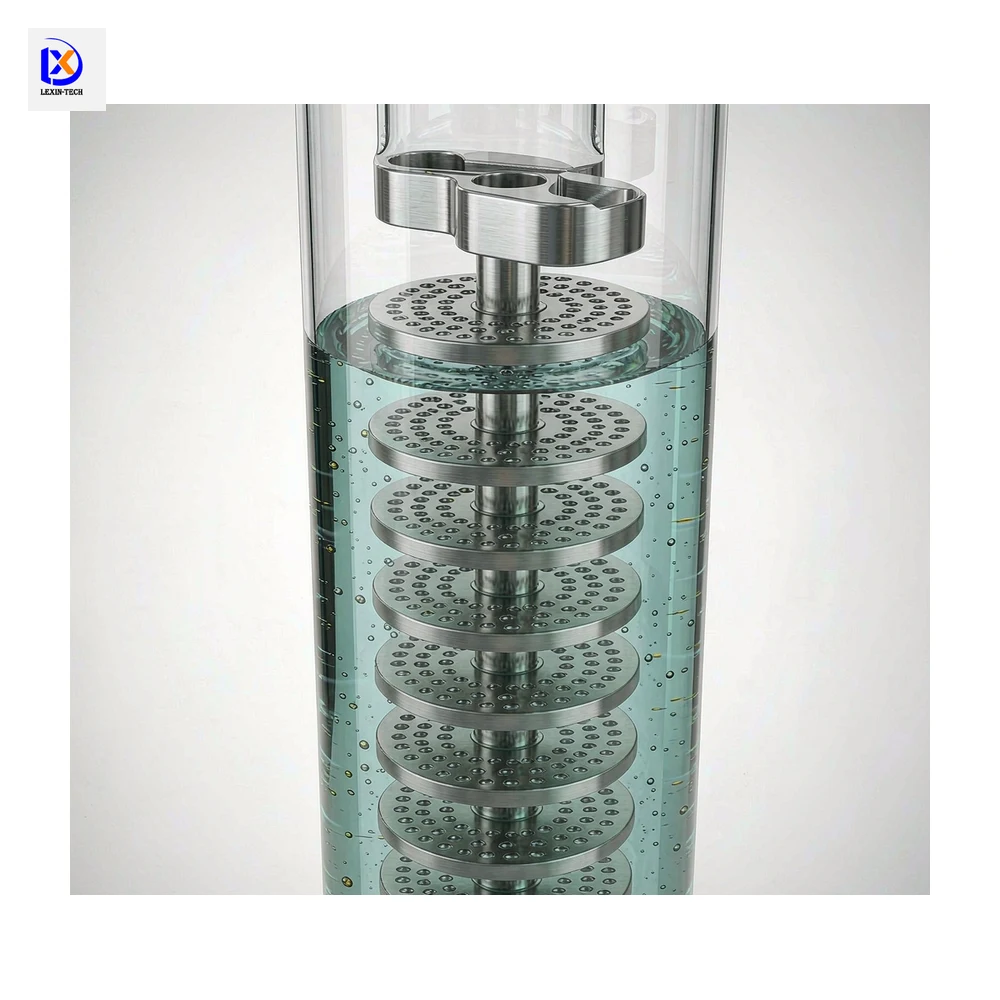

| Plate Configuration | Perforated 316L plates, approx. 35-50% free area, adjustable plate spacing |
| Reciprocating Drive | Top-mounted electric motor with eccentric reciprocating mechanism; stroke 5-25 mm adjustable; stroke frequency 0-150 strokes/min (to be confirmed by test work) |
| Total Throughput (Both Phases) | 10 - 100 L/h pilot range (to be confirmed by test work) |
| Phase Interface Control | Bottom settler section with interface sight glass and adjustable take-off valves |
| Operating Temperature | Ambient to 80 C; optional jacketed glass section for temperature control |
| Suitable System | Aqueous-organic systems free of fluoride and chloride, H2SO4 up to 150 g/L; fluoride/chloride media require lined, CPVC or titanium construction |
Values are the documented specifications for this model. Final dimensions are confirmed on the approved drawing before production.
