Solid-Liquid Separation Equipment
Laboratory Pressure Leaf Filter
PriceOn request — quoted against your specification
Lexin-tech is professional customized China Laboratory Pressure Leaf Filter manufacturers,supplier and factory, specialized in providing customized Laboratory Pressure Leaf Filter in stock with wholesale price. For quotation, contact us now.
- Built to order
Engineered against your feed assay and throughput - Bench & pilot tested
Sample testing before the flowsheet is frozen - Export documented
Pre-tested, skid-mounted, documented for customs - EN / ES / RU / AR
Technical support in four languages
Lexin-tech is professional customized China Laboratory Pressure Leaf Filter manufacturers,supplier and factory, specialized in providing customized Laboratory Pressure Leaf Filter in stock with wholesale price. For quotation, contact us now.
Specifications
| Unit Type | Laboratory pressure leaf filter with vertical filter leaf in a horizontal pressure shell, for cake formation, washing and drying studies on leach pulps, precipitates and clarifying duties |
|---|---|

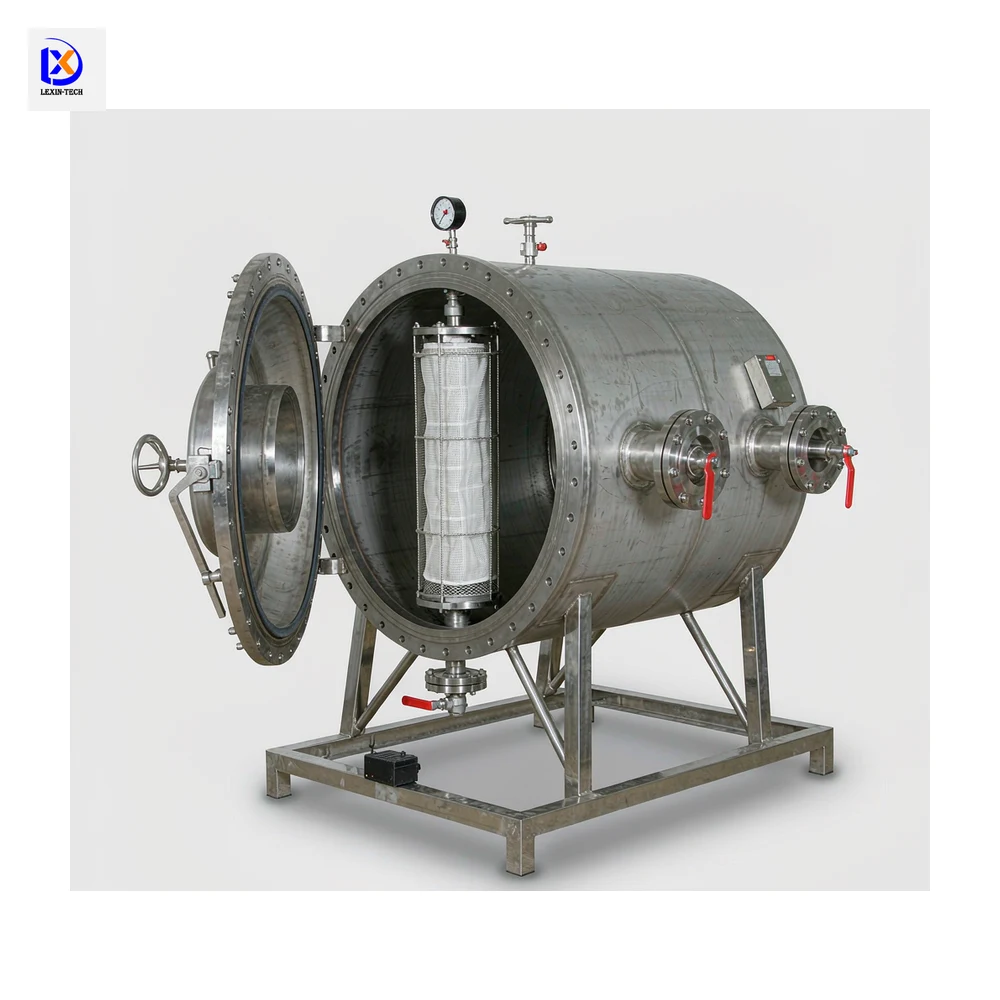

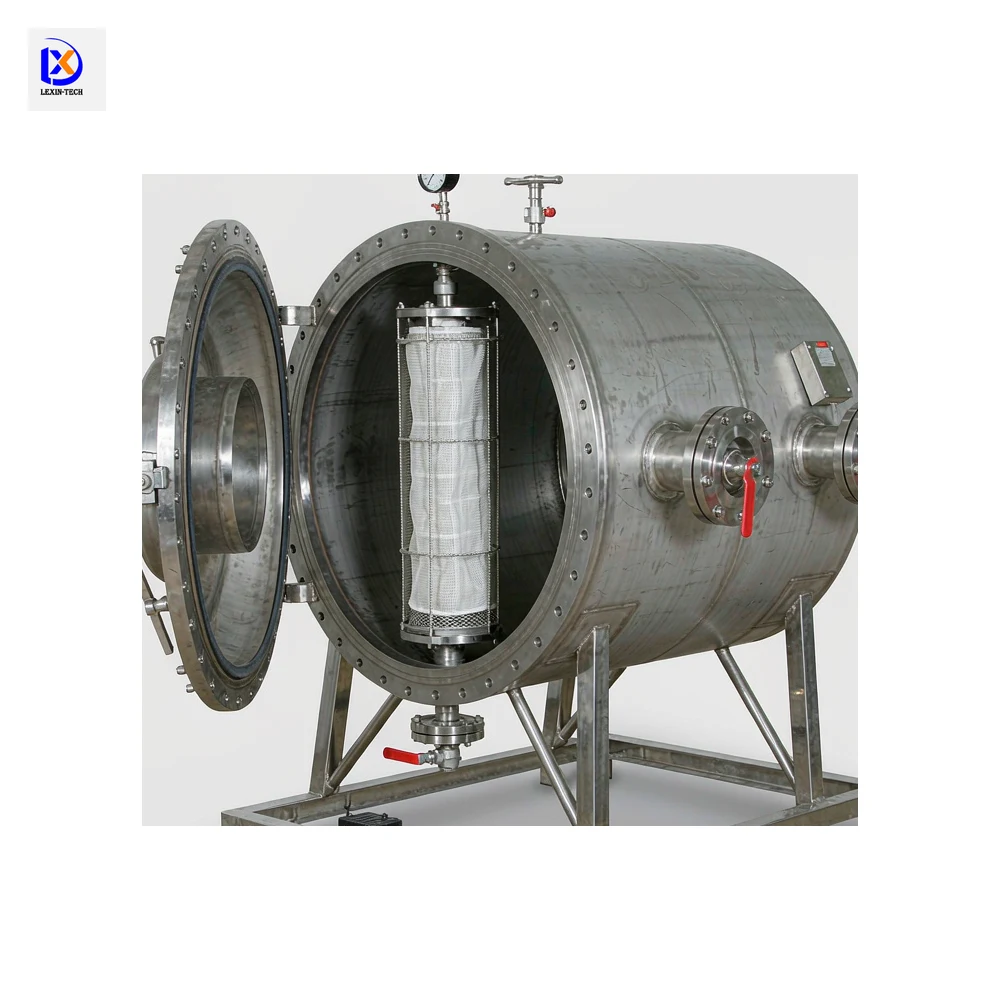

| Pressure Vessel | Horizontal 316L stainless steel shell, approx. 400 mm ID x 700 mm long, hinged quick-opening front cover with hand wheel and swing bolts; designed per GB 150 (ASME VIII Div.1 on request), material certificate and hydrostatic test report supplied with the unit |
| Filter Leaf | 1 vertical filter leaf approx. 300 x 400 mm: filter cloth over a drainage mesh frame with central outlet nipple; 3-5 leaf multi-element version on request |
| Working Pressure | 0-0.6 MPa; compressed-air blow-down connection for cake dewatering |
| Operating Temperature | Ambient to 120 degC; jacketed shell option for hot filtration (to be confirmed by test work) |
| Connections | DN25 slurry feed and filtrate outlet flanges with ball valves, top air vent valve, bottom drain valve |
| Cake Discharge | Leaf withdrawn through the open front cover for manual cake discharge; typical cake thickness 5-30 mm (to be confirmed by test work) |
| Cloth Options | PP, polyester or PTFE filter cloth, 1-25 um nominal retention; diatomaceous-earth precoat option for polishing duty |
| Frame & Utilities | Stainless steel floor stand; requires 220 V single-phase power (if agitated feed tank fitted) and compressed air |
| Applicable Systems | Neutral to acidic pulps (H2SO4 |
Values are the documented specifications for this model. Final dimensions are confirmed on the approved drawing before production.
Related products
-
-

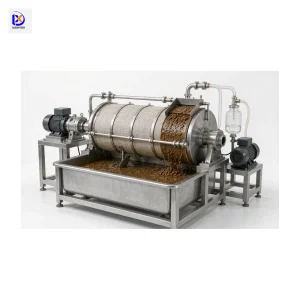

Lab-Scale Rotary Drum Vacuum Filter
