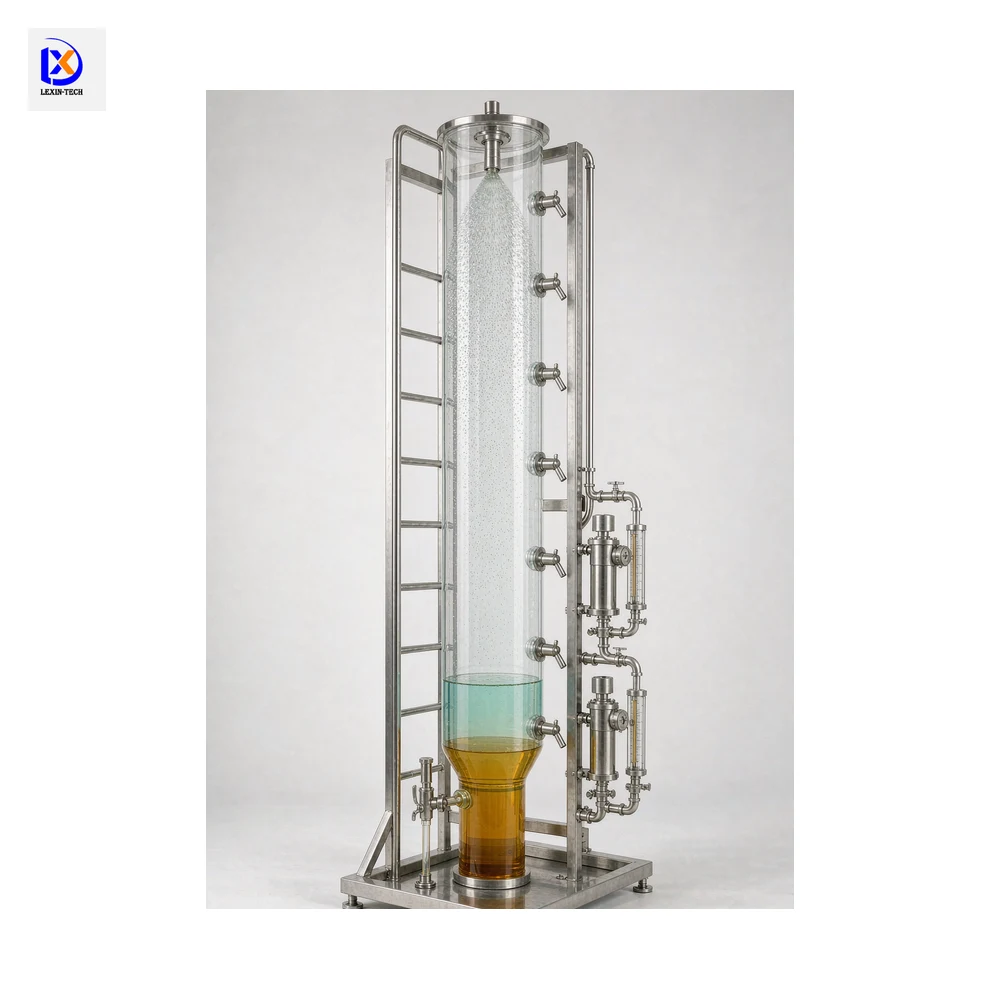

Pilot-Scale Spray Extraction Column

Name: Pilot-Scale Spray Extraction Column
Brand: Lexin-tech
SKU: pilot-scale-spray-extraction-column
Availability: InStock

PriceOn request — quoted against your specification

Lexin-tech is professional customized China Pilot-Scale Spray Extraction Column manufacturers,supplier and factory, specialized in providing customized Pilot-Scale Spray Extraction Column in stock with wholesale price. For quotation, contact us now.

Request a Quote

Built to order
Engineered against your feed assay and throughput
Bench & pilot tested
Sample testing before the flowsheet is frozen
Export documented
Pre-tested, skid-mounted, documented for customs
EN / ES / RU / AR
Technical support in four languages

SKU: pilot-scale-spray-extraction-column Categories: Liquid-Liquid Separation (Solvent Extraction), Extraction Column

Specifications

Column Type	Spray extraction column; internals-free shell with single full-cone spray nozzle, no packing and no plates for minimum fouling and lowest pressure drop
Column Diameter	DN100 / DN150 / DN200 pilot sizes (to be confirmed by test work)
Column Height	2 - 4 m built from interchangeable borosilicate glass shell modules on a stainless steel support frame
Wetted Materials	GG17 borosilicate glass shell; 316L stainless steel ends, flanges, spray nozzle and frame; PTFE gaskets

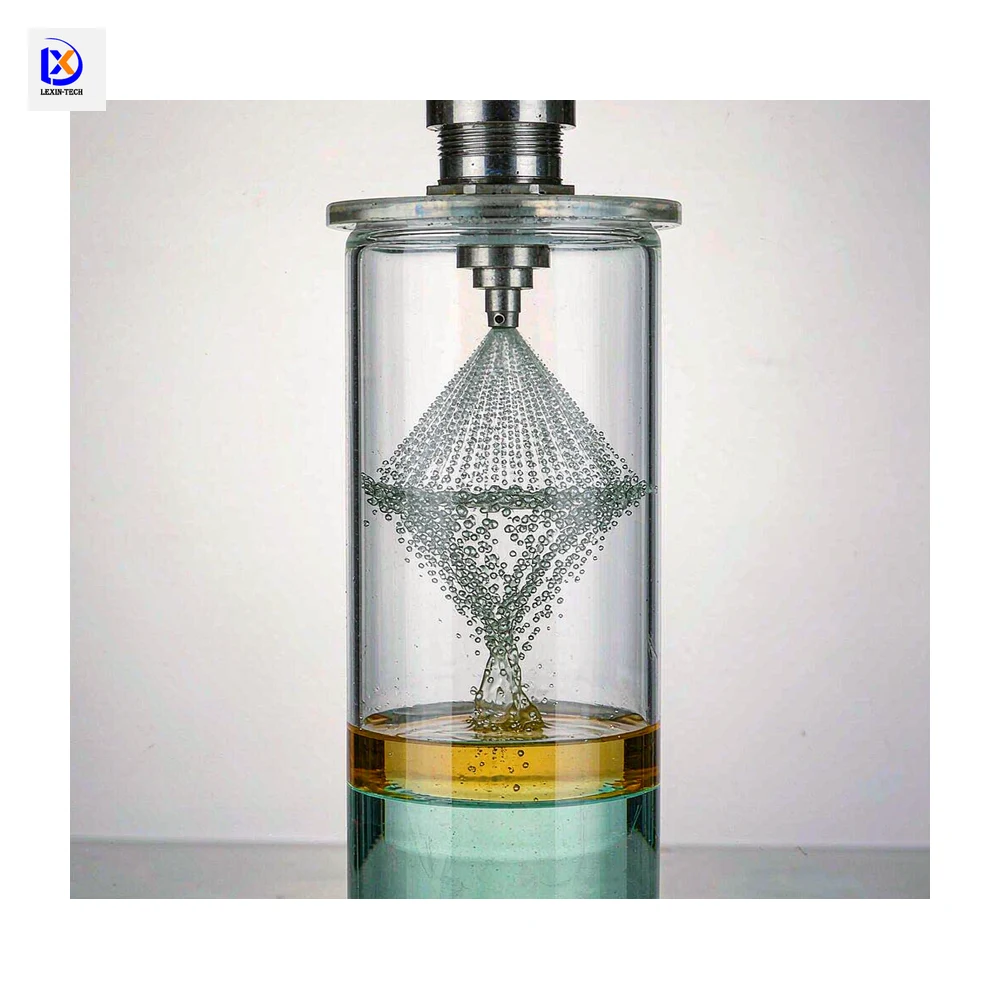

Spray System	Top-mounted 316L full-cone spray nozzle, interchangeable orifice sizes; droplet size set by nozzle selection and phase ratio (to be confirmed by test work)
Side Ports	Multiple wall nozzles along the column for aqueous feed, organic feed, sampling and temperature measurement at staggered heights

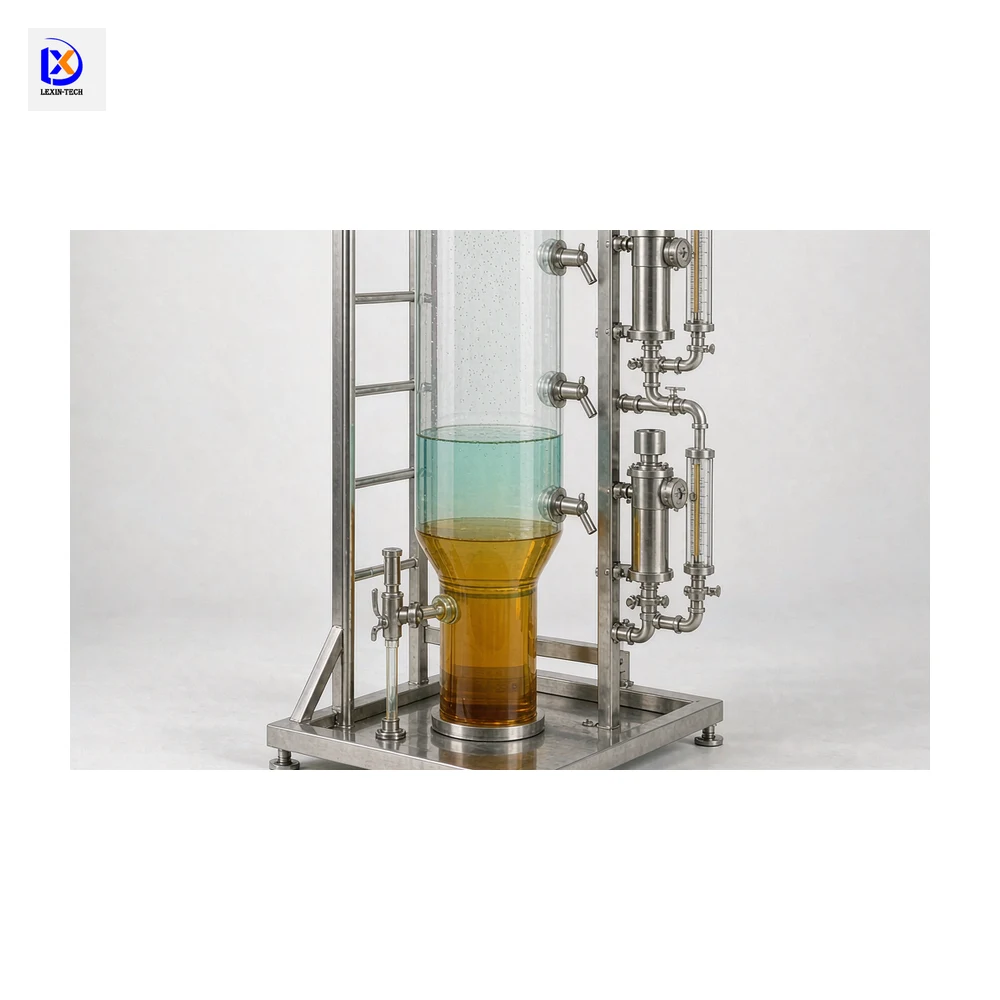

Settled Section	Bottom enlarging settler boot with clear phase-interface sight glass and adjustable heavy/light phase take-off valves
Total Throughput (Both Phases)	10 - 100 L/h pilot range (to be confirmed by test work)
Operating Temperature	Ambient to 80 C; optional jacketed glass section for temperature control
Suitable System	Aqueous-organic systems free of fluoride and chloride, H2SO4 up to 150 g/L; fluoride/chloride media require lined, CPVC or titanium construction
